HVFDSB3C0100G332/U - SmartVFD BYPASS, 480Vac, 10HP, Graphical, NEMA 3R Enclosure, Three Contactor Bypass with Auto-bypass and HOA - Quad Industry GmbH
Àðòèêóë: HVFDSB3C0100G332/U
Íàèìåíîâàíèå: SmartVFD BYPASS, 480Vac, 10HP, Graphical, NEMA 3R Enclosure, Three Contactor Bypass with Auto-bypass and HOA
Ïðîèçâîäèòåëü: Honeywell
Overview
The SmartVFD BYPASS is available in four configurations to meet your application needs: Disconnect Only, Two Contractor Bypass, Three Contractor Bypass, and Three Contractor with Auto-Bypass.
Features
Provides an economical means of bypassing the VFD
Freeze/Fire/Smoke Interlock
Fused Disconnect on some models

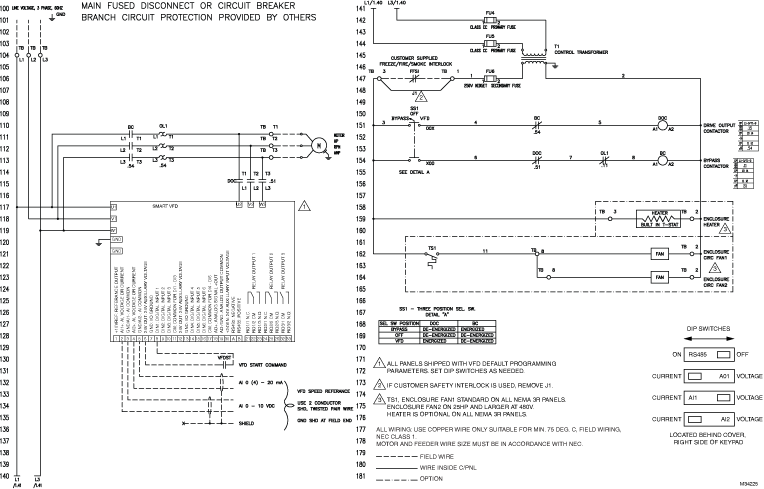

3-Contactor bypass provides VFD isolation from power with motor running in BYPASS mode
3-Contactor bypass provides TEST position powers the VFD without sending power to the motor
3-Contactor Bypass with Auto-Bypass adds the control capabilities below to the standard three Contactor Bypass
Product Specifications
Dimensions (in.)
24x30x10
Dimensions (mm)
609x752x254
Weight (lb)
78
Weight (kg)
35.38
Frequency
0 Hz to 320 Hz
Additional Features
Auto-Bypass & Hand-Off-Auto
Voltage
460 Vac
Operating Temperature Range (F)
14 F to 122 F
Operating Temperature Range (C)
-10 C to 50 C
Enclosure
NEMA 3R
Relay Outputs
Max. switching load: 250Vac/2A or 250Vdc/0,4A
Horsepower
10 HP
Current Ratings
16A
Analog Current Output
0 (4) - 20 mA, max 500 ohm
Bypass
Drive with 3 contactor bypass and Auto bypass
Auto Bypass
Yes
Drive Family
SmartVFD HVAC
Contactor
3 Contactors
Pilot Lights
No
Type of RFI Filter
EMC Filter
Continuous Output Current
overload 1.5 x High overload current (1min/10min), overload 1.1 x Low overload current (1min/10min)
