F300A2025/U - Electronic Air Cleaner, 20x25 - Quad Industry GmbH
Àðòèêóë: F300A2025/U
Íàèìåíîâàíèå: Electronic Air Cleaner, 20x25
Ïðîèçâîäèòåëü: Honeywell
Overview
F300 optimizes efficiency with airflow capturing up to 98% of particles that pass through it. It operates with all gas, oil and electric forced warm air furnaces and AC systems, and is available in four sizes to fit most ducts.
Features
Media post-filter provides enhanced filtration on select models.
Solid state power supply is self-regulating and maintains peak efficiency during a wide range of cell dirt loading conditions.
Low-profile door with test button to check system operation.
Helps filter efficiency-robbing 'gunk' before it coats critical system parts.
Very low pressure drop.
Exclusive 10-year Clean Coil Guarantee.
Rugged zinc-coated, roll-formed cabinet provides superior strength and corrosion protection.
Product Specifications
Application
Duct mounted

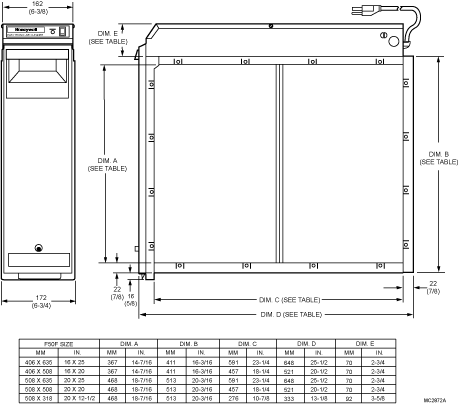

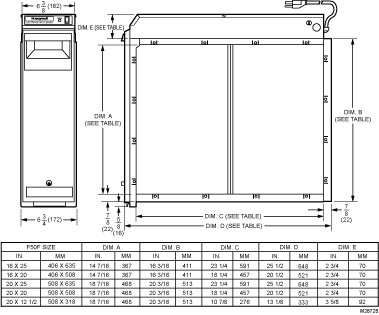

Dimensions (in.)
20 in. x 25 in.
Dimensions (mm)
508 mm x 635 mm
Type of Air Cleaner
Electronic Air Cleaner
Airflow Capacity (cfm)
Maximum-- 2000 cfm
Airflow Capacity (m?/hr)
Maximum-- 3400 m?/hr
Efficiency Standard
Efficiency ratings are based on American Society of Heating, Refrigerating and Air-Conditioning Engineers Standard 52.2-1999.,Efficiency ranges are defined for small particles, E1=0.3 to 1.0 microns, medium particles, E2=1.0 to 3.0 microns, and large part
