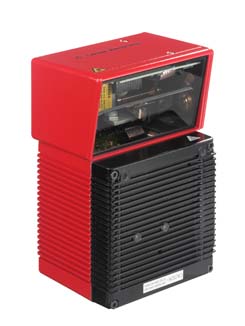

50035508 - BCL 90 CAT ON 100 - Stationary barcode reader - Quad Industry GmbH

Àðòèêóë: 50035508
Íàèìåíîâàíèå: BCL 90 CAT ON 100 - Stationary barcode reader
Ïðîèçâîäèòåëü: Leuze electronic


Part description BCL 90 CAT ON 100 - Stationary barcode reader
Part no. 50035508



  • Technical features

    • Basic data
      • SeriesBCL 90
    • Read data
      • Code types, readable2/5 Interleaved, Code 39, Code 128, Code 93, Codabar, EAN 8/13, EAN 128, UPC
      • Scanning rate, typical800 scans/s
    • Optics
      • Reading distance400 ... 1.500 mm
      • Light sourcelaser, Red
      • Laser light wavelength650 nm
      • Laser safety class2, EN 60825
      • Reading methodOscillating-mirror scanner
      • Scanning rate600 ... 1.200 scans/s
      • Beam deflectionVia rotating polygon wheel + stepping motor with mirror
      • Light beam exit!
    • Electrical equipment
      • Performance data
        • Supply voltage18 ... 30 V, DC
        • Power consumption, max.18 V·A
      • Inputs
        • Number of digital switching inputs6 Piece(s)
      • Outputs
        • Number of digital switching outputs4 Piece(s)
    • Interface
      • TypeRS 232, RS 422, RS 485
      • RS 232
        • FunctionProcess
      • RS 422
        • FunctionProcess
      • RS 485
        • FunctionProcess
    • Service interface
      • TypeRS 232
      • RS 232
        • FunctionConfiguration via software
    • Connection
      • Number of connections2 Piece(s)
      • Connection 1
        • Type of connectionSub-HD
        • FunctionVoltage supply, Service interface, Data interface
        • No. of pins15 Piece(s)
        • ModelMale
        • Designation on deviceHost / Term
      • Connection 2
        • Type of connectionSub-HD
        • Designation on deviceI/O
        • FunctionSignal IN, Signal OUT, Voltage supply
        • No. of pins15 Piece(s)
        • ModelFemale
    • Mechanical data
      • DesignCube
      • Dimension127.5 mm x 183 mm x 94 mm
      • Housing materialMetal, aluminum
      • Lens cover materialGlass
      • Net weight2.200 g
      • Housing colorRed, RAL 3000, Black, RAL 9005
      • Type of fasteningMounting thread, Via optional mounting device
    • Operation and display
      • Type of displayLED
      • Number of LEDs4 Piece(s)
      • Type of configurationSoftware
      • Operational controlsPC software
    • Environmental data
      • Ambient temperature, operation0 ... 40 °C
      • Ambient temperature, storage-40 ... 70 °C
      • Relative humidity (non-condensing)90 %
    • Certifications
      • Protection classIP 65
      • Safety classIII
      • CertificationsCE
      • Test procedure for EMC in accordance with standardIEC 801
      • Test procedure for shock in accordance with standardIEC 60068-2-27, test Ea
      • Test procedure for vibration in accordance with standardIEC 68.2.6
    • Functions
      • FunctionsCode fragment technology, Alignment mode, LED indicators, Heating, Reference code comparison

  • Downloads

    • Part data of: 2013-11-24 21:03:00
