822963-01 - CHI 703 - Quad Industry GmbH

Артикул: 822963-01
Наименование: CHI 703
Производитель: Leine & Linde AB

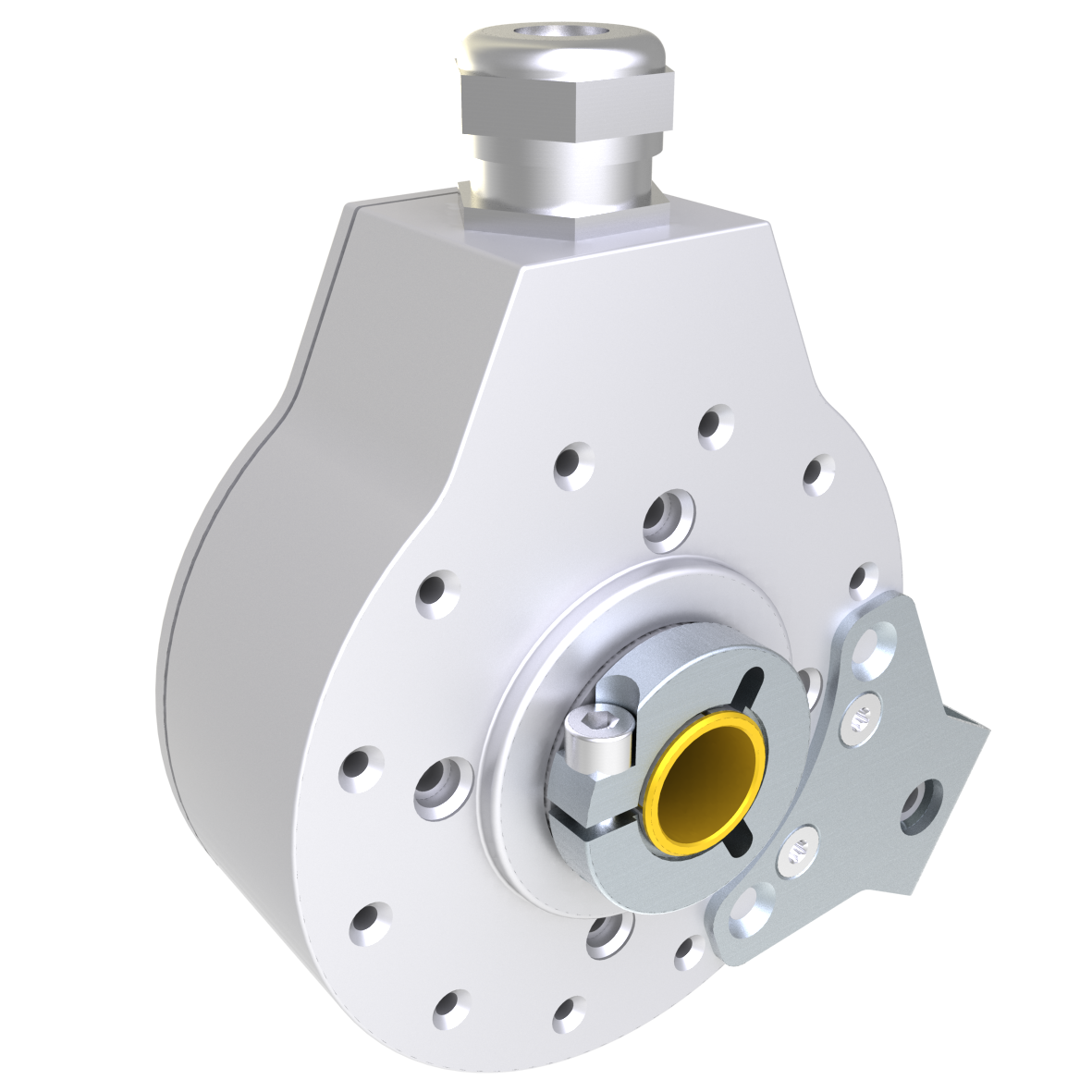

CHI 703

Part number: 822963-01

  • Robust encoder in compact design
  • Total build length 55 mm
  • Through-going hollow shaft with insulated peek insert


OBSOLETE MODEL


Product data

Type CHI
Model 703
Shaft type ?16 mm through-going hollow shaft
Flange type 87-flange
Resolution 1024
Power supply 9-30 Vdc
Output signal RS422
Connection type Cable
Connecting direction Radial
Cable length 15.00 m
Torque support 120 degrees torque bracket



Downloads

Datasheet CHI 7033D model (step)Mounting instructionRecommended mating shafts

Accessories

Connectors & cables
