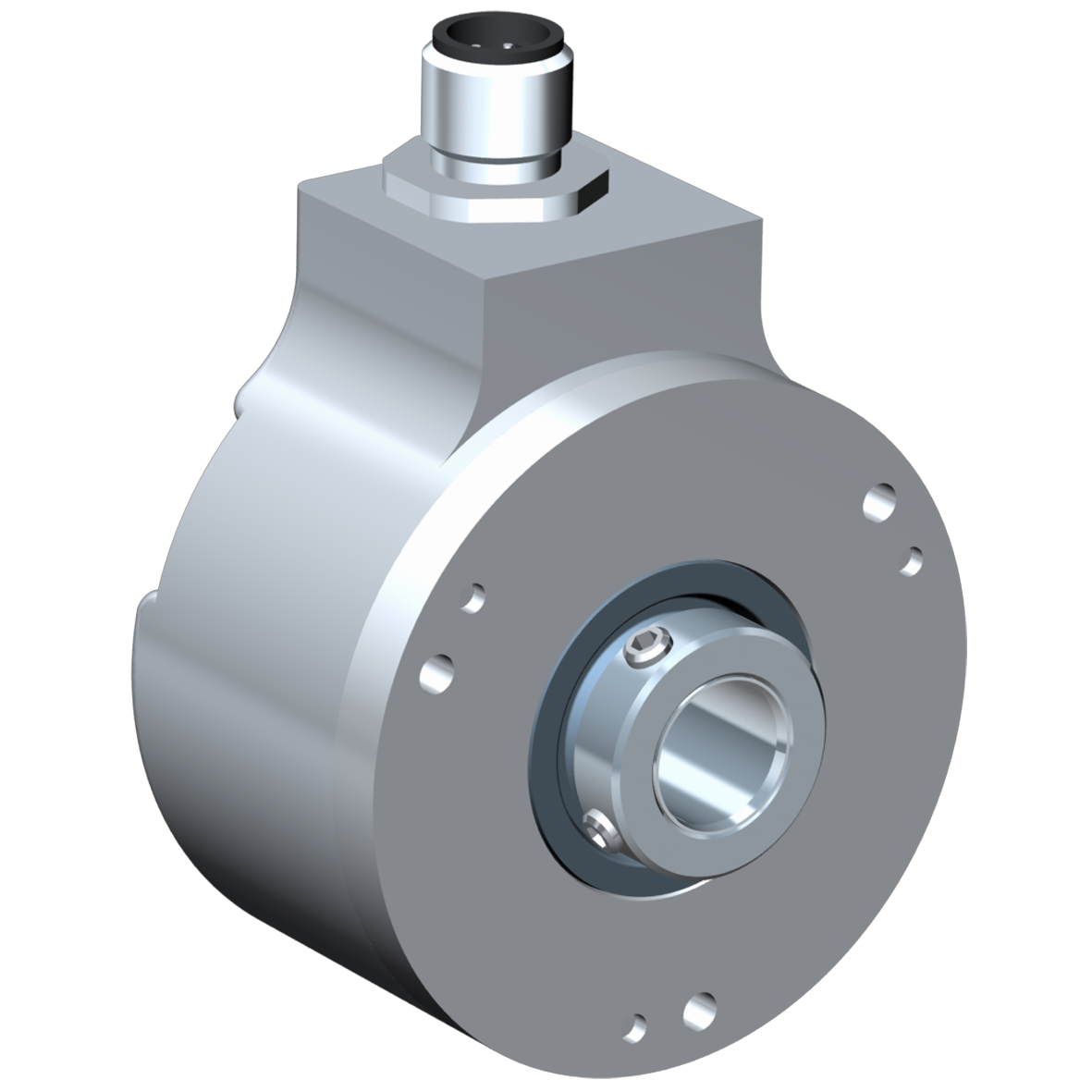

RHI 504

Part number: 575900-04

  • Robust ?58 mm encoder with hollow shaft
  • Short-circuited protected outputs
  • IP67 at housing, IP66 at shaft inlet
  • High temperature version


OBSOLETE MODEL


Product data

Type RHI
Model 504 High temperature (100 ВєC)
Shaft type ?12 mm blind hollow shaft
Flange type 56/57-flange
Resolution 2500
Power supply 9-30 Vdc
Output signal HTL
Connection type M12 connector 8-pin
Connecting direction Radial



Downloads

Mounting instructionDatasheet RHI 5043D Model (step)Recommended mating shafts
