751179-08 - XHI 861 - Quad Industry GmbH

Артикул: 751179-08
Наименование: XHI 861
Производитель: Leine & Linde AB

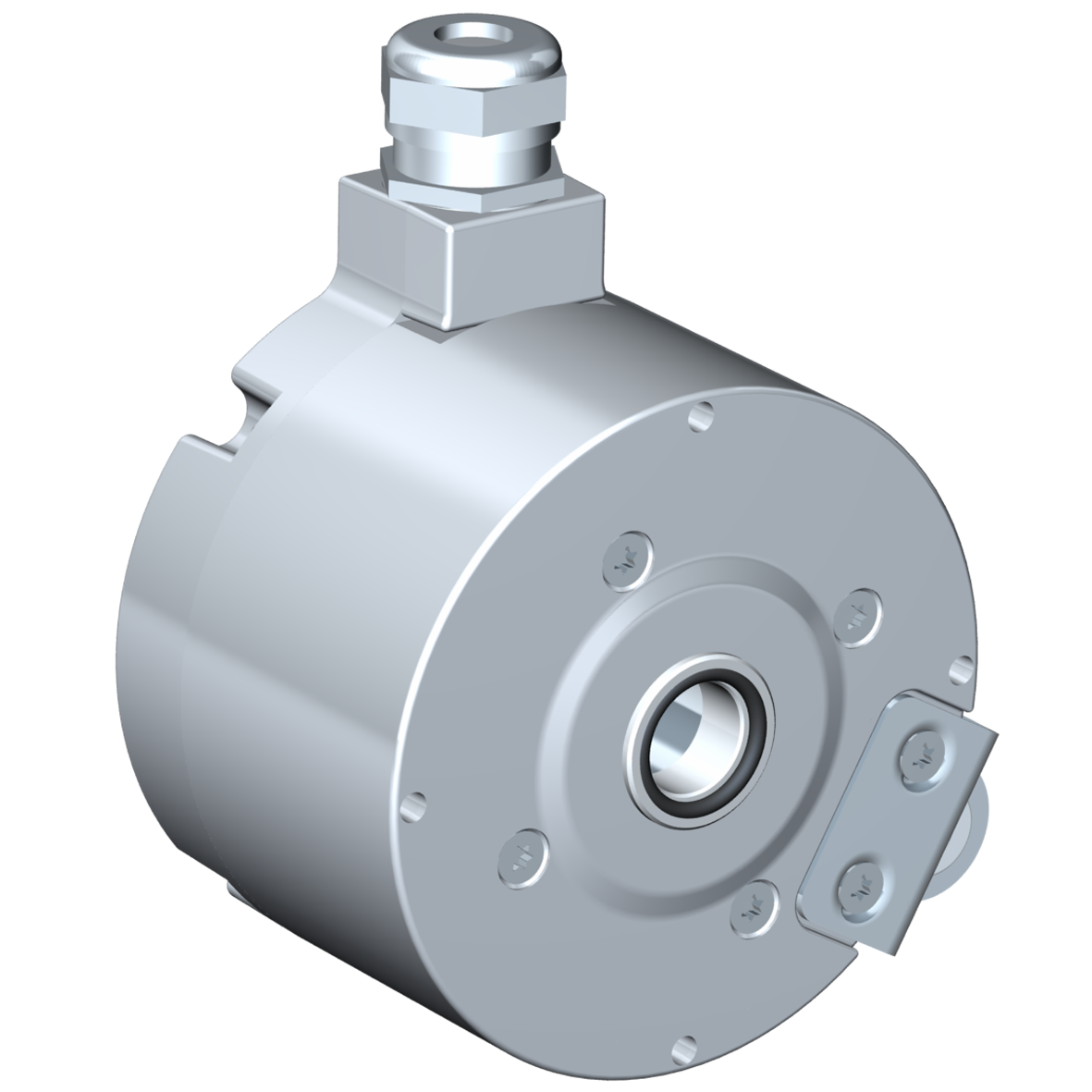

XHI 861

Part number: 751179-08

  • Performance hollow shaft encoder for heavy duty industries
  • High vibration and shock resistance
  • Electrically insulated shaft


OBSOLETE MODEL


Product data

Code key description 861118456
Type XHI
Model 861
Shaft type ?16 mm blind hollow shaft
Flange type 86-flange
Resolution 300
Power supply 9-30 Vdc
Output signal HC-HTL
Connection type Cable gland + ADS Classic
Connecting direction Radial
Cable gland dimension M20 for ?8-11 mm cables
Number of channels 6
Advanced Diagnostic System ADS Classic
Torque bracket 120 degrees orientation



Downloads

Datasheet XHI 861ADS Classic softwareADS Classic ManualRecommended mating shaftsMounting instruction 861/862/865

Accessories

Connectors & cables
