750697-03 - XHI 861 - Quad Industry GmbH

Артикул: 750697-03
Наименование: XHI 861
Производитель: Leine & Linde AB

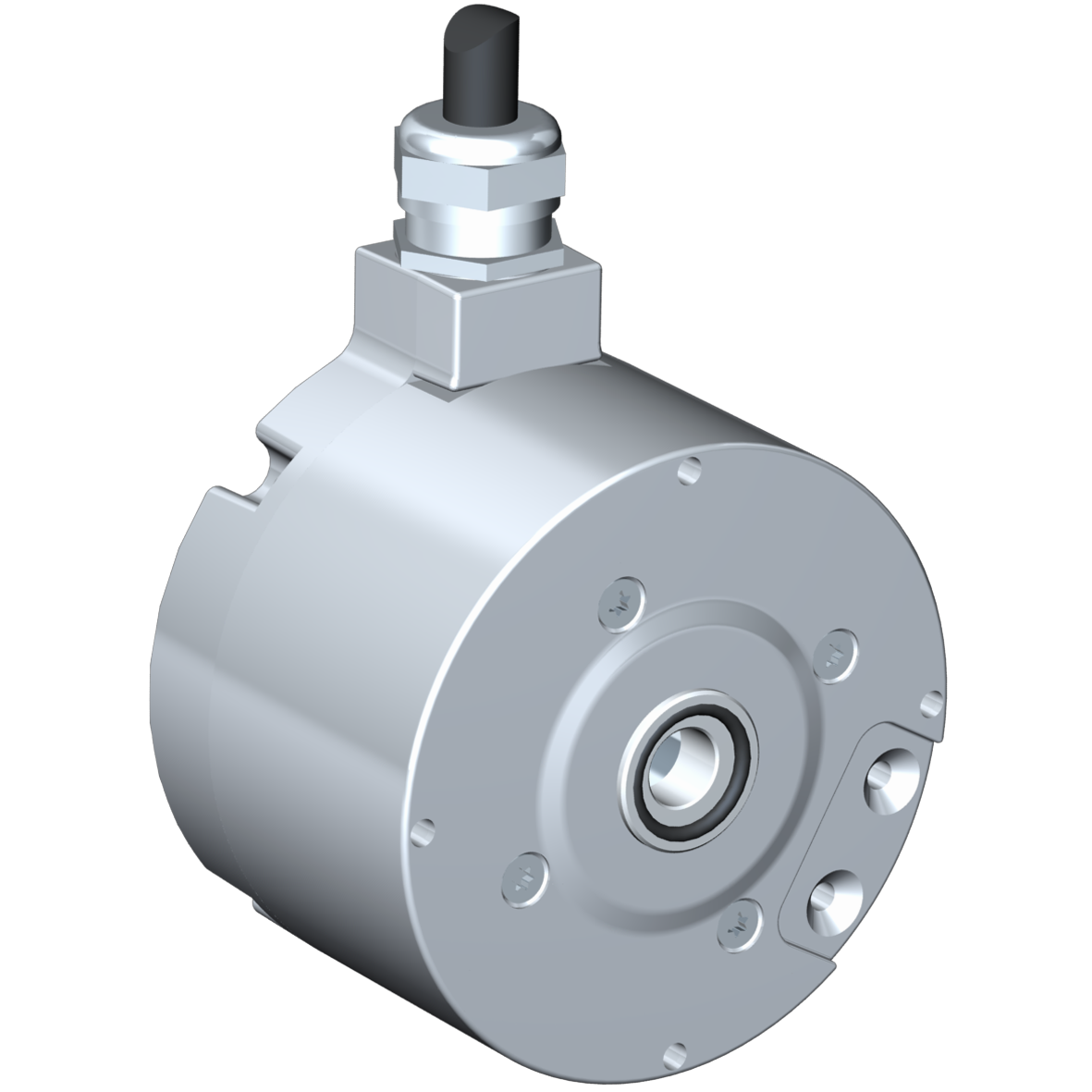

XHI 861

Part number: 750697-03

  • Performance hollow shaft encoder for heavy duty industries
  • High vibration and shock resistance
  • Electrically insulated shaft


OBSOLETE MODEL


Product data

Code key description 861007355
Type XHI
Model 861
Shaft type ?12 mm blind hollow shaft
Flange type 86-flange
Resolution 1024
Power supply 9-30 Vdc
Output signal HC-HTL
Connection type Cable
Connecting direction Radial
Cable length 1.50 m
Cable gland dimension M20 for ?8-11 mm cables
Number of channels 3
Advanced Diagnostic System Available upon request
Torque bracket Available upon request



Downloads

Datasheet XHI 8613D Model (step)Recommended mating shaftsMounting instruction 861/862/865

Accessories

Connectors & cables
