Артикул: 823626-01
Наименование: XHI 862
Производитель: Leine & Linde AB

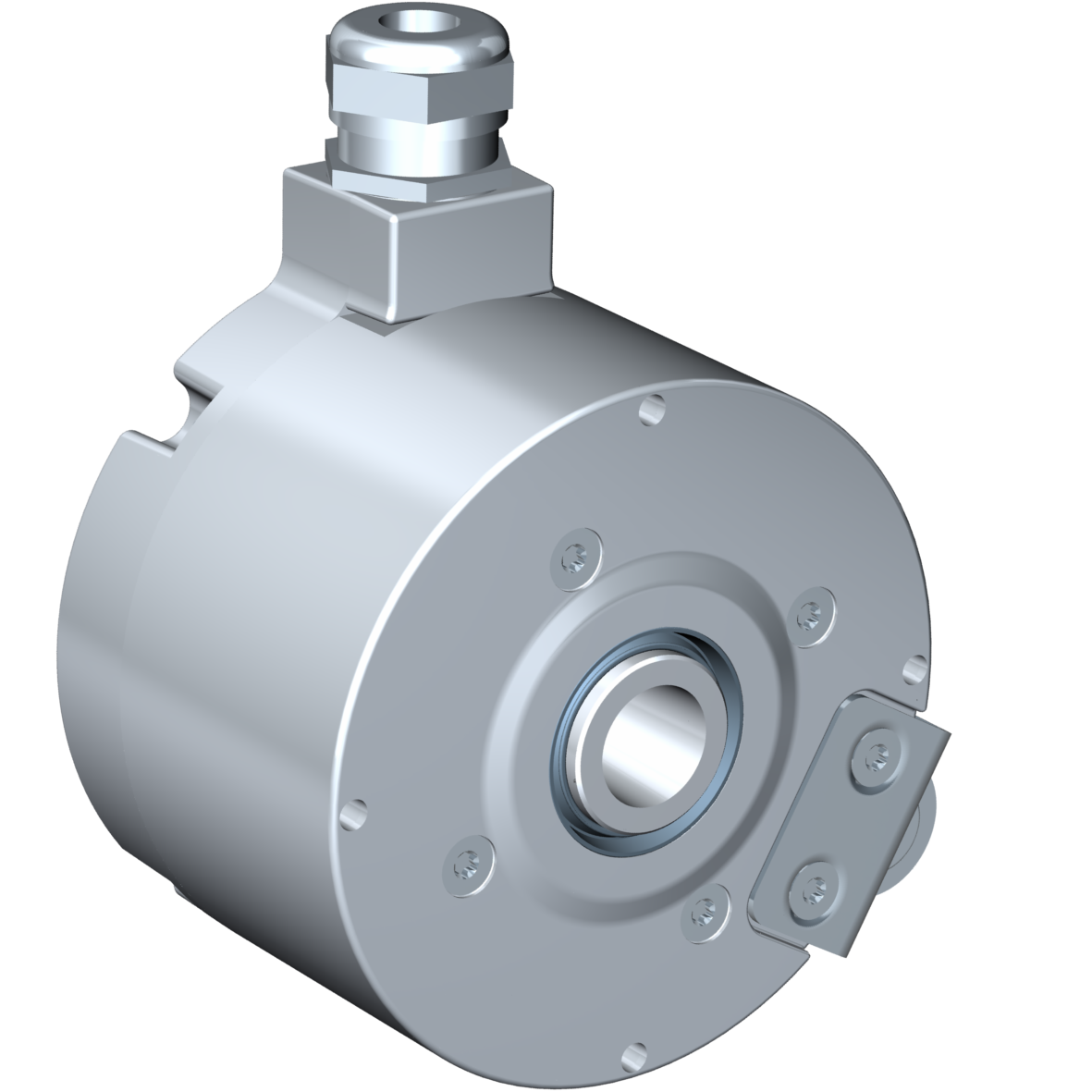

XHI 862

Part number: 823626-01

  • Performance hollow shaft encoder for heavy duty industries
  • Hybrid bearings for extended lifetime
  • High vibration and shock resistance
  • Electrically insulated shaft; up to 2,5 kV


OBSOLETE MODEL


Product data

Code key description 862009556
Type XHI
Model 862
Shaft type ?17 mm taper hollow shaft
Flange type 86-flange
Resolution 3072
Power supply 9-30 Vdc
Output signal HC-HTL
Connection type Cable gland
Connecting direction Radial
Cable gland dimension M20 for ?11-14 mm cables
Number of channels 6
Advanced Diagnostic System Available upon request
Overvoltage protection Available upon request
Torque bracket 120 degrees orientation



Downloads

Datasheet XHI 862Recommended mating shafts3D Model (step)Mounting instruction 861/862/865

Accessories

Connectors & cables
