1041551-01 - XHI 801 - Quad Industry GmbH

Артикул: 1041551-01
Наименование: XHI 801
Производитель: Leine & Linde AB

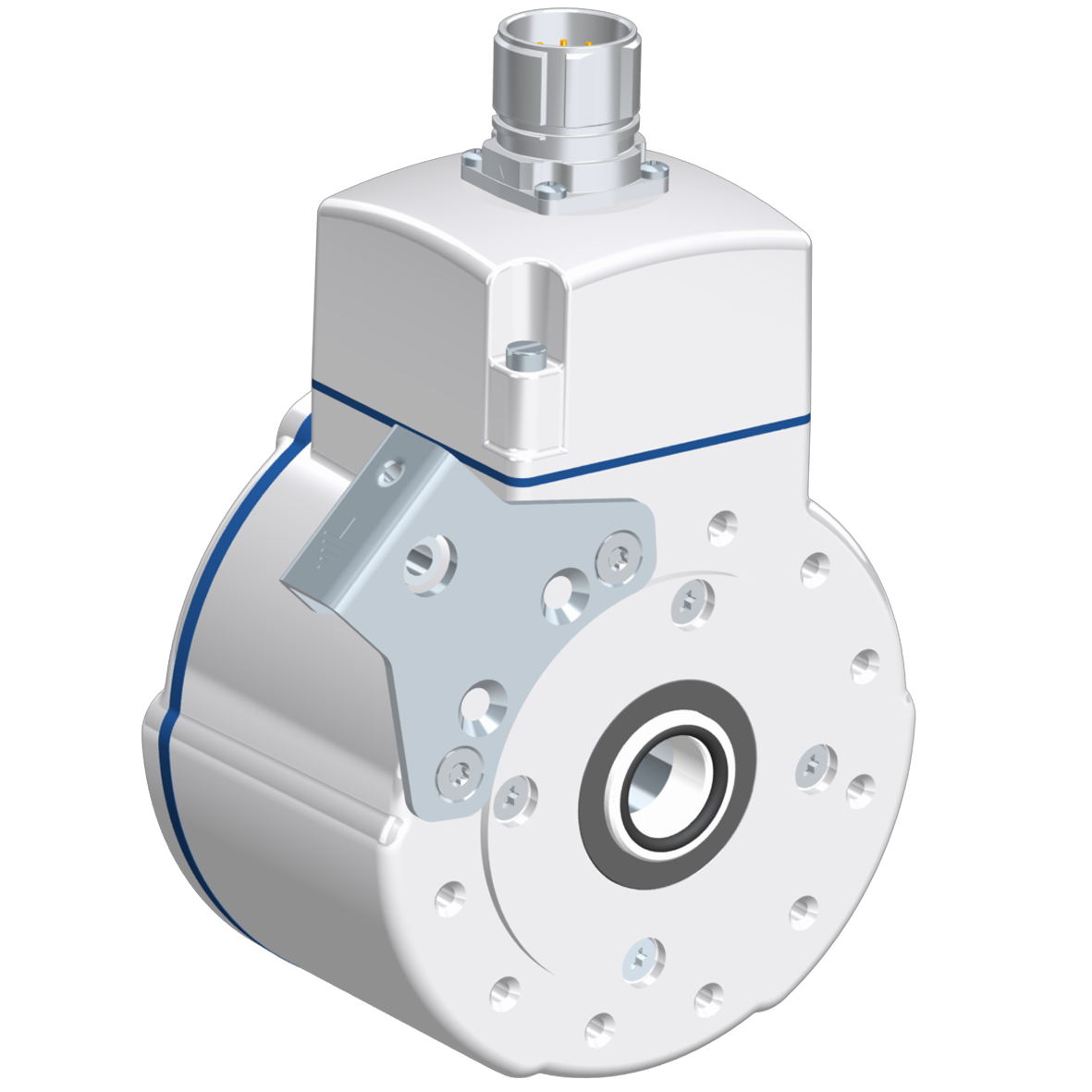

XHI 801

Part number: 1041551-01

  • Performance hollow shaft encoder for heavy duty industries
  • Hybrid bearings for extended lifetime
  • High vibration and shock resistance
  • Electrically insulated shaft; up to 2,5 kV


OBSOLETE MODEL


Product data

Type XHI
Model 801 Extra robust
Shaft type ?16 mm blind hollow shaft
Flange type 86-flange
Resolution 8192
Power supply 9-30 Vdc
Output signal HTL
Connection type M23 connector 12-pin
Connecting direction Radial
Pin layout CW
Overvoltage protection Available upon request
Number of channels 6
Torque support 315 degrees torque bracket
Advanced Diagnostic System ADS Classic



Downloads

Mounting instruction 801/803Datasheet XHI 801ADS Classic software3D Model (step)ADS Classic ManualRecommended mating shafts
