L4006A2114/B - High or Low limit Aquastat Controller - Quad Industry GmbH
Àðòèêóë: L4006A2114/B
Íàèìåíîâàíèå: High or Low limit Aquastat Controller
Ïðîèçâîäèòåëü: Honeywell
Overview
Aquastatî Controllers are immersion type devices for limiting or regulating the temperature of liquids in boilers, storage tanks, and other applications where temperature control is required. Honeywell's L4006 are used in applications that utilize the existing wells
Features
Totally enclosed Micro SwitchÙ snap-acting switches operate on temperature rise to setpoint.
Visible control point scale and external adjustment screw permit easy setting.
Horizontal or vertical insertion of the sensing element.
Direct or well immersion of the sensing element.
Models available for strap-on mounting.
Remote bulb model may be used to sense air temperature in ducts and in outside air sensing applications.
TRADELINE models include heat-conductive compound.
Select models have wells.
UL limit rated device.
Product Specifications
Hazmat Information
UN1294 Toluene
Application
High or Low limit

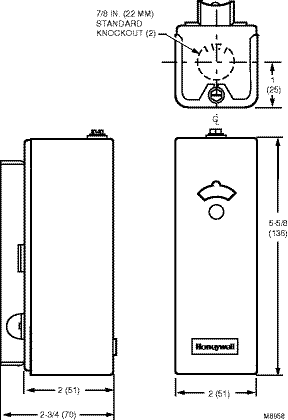

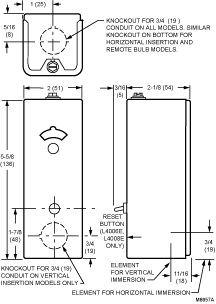

Dimensions (in.)
Case--5 5/8 in. high x 2 in. wide x 2 1/8 in. deep
Dimensions (mm)
Case--143 mm high x 51 mm wide x 54 mm deep
Temperature Range (F)
Maximum--150 F
Temperature Range (C)
Maximum--66 C
Includes
Stop factory-set at 150 F
Mounting
Horizontal
Electrical Ratings
At Full Load-- 2.6A @ 120 Vac: 1.3A @ 240 Vac, At Locked Rotor-- 15.6A @ 120 Vac: 7.8A @ 240 Vac
