Артикул: 809752-01
Наименование: CHI 703
Производитель: Leine & Linde AB

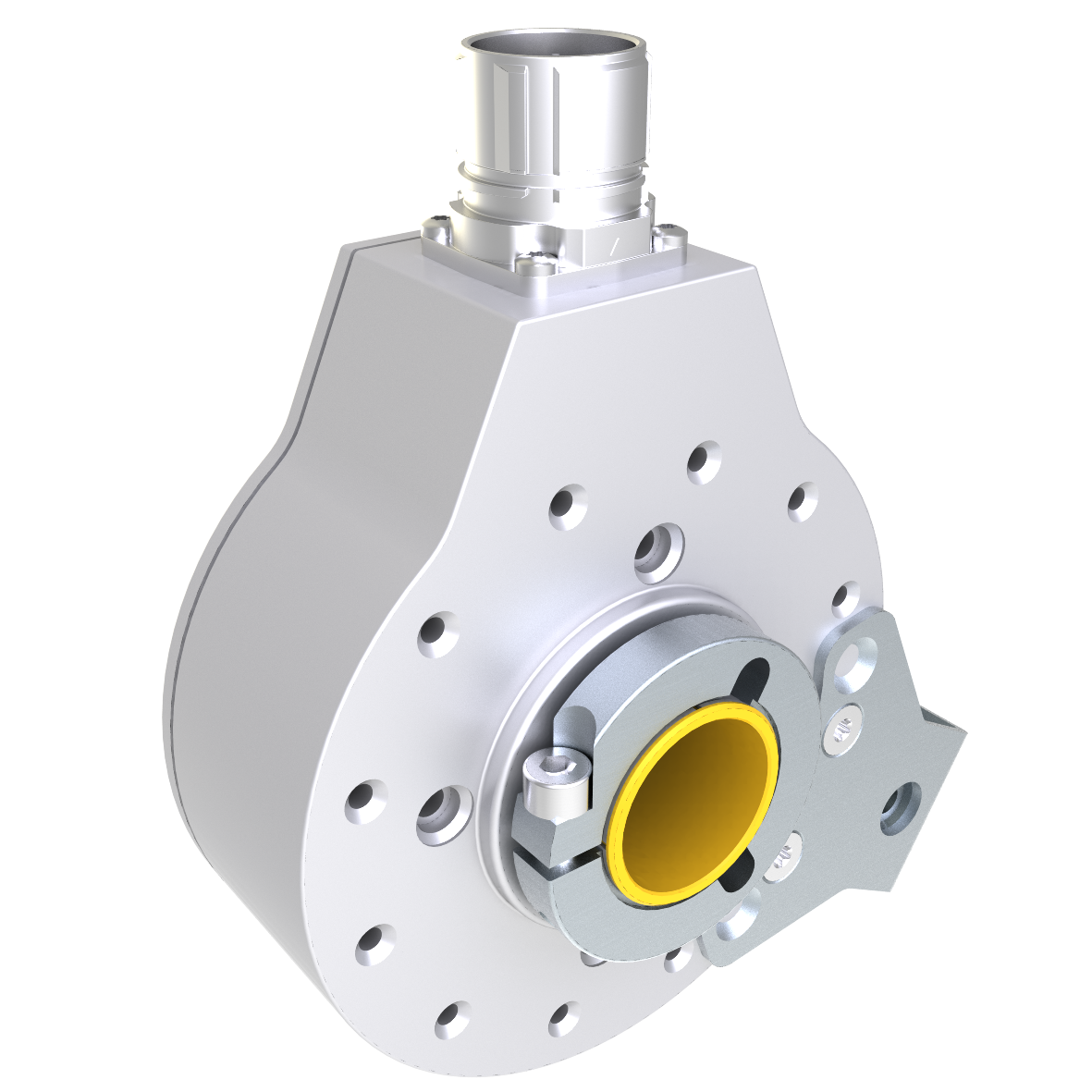

CHI 703

Part number: 809752-01

  • Robust encoder in compact design
  • Total build length 55 mm
  • Through-going hollow shaft with insulated peek insert


OBSOLETE MODEL


Product data

Type CHI
Model 703
Shaft type ?1 inch through-going hollow shaft
Flange type 87-flange
Resolution 3072
Power supply 5-30 Vdc
Output signal HTL
Connection type M23 connector 12-pin
Connecting direction Radial
Torque support 120 degrees torque bracket



Downloads

Datasheet CHI 7033D Model (step)Mounting instructionRecommended mating shafts

Accessories

Connectors & cables
