Артикул: C7400C1002/U
Наименование: Enthalpy Sensor - supply duct/return air
Производитель: Honeywell
|
|
Overview Analog enthalpy sensor for use with W7212 and W7459 economizer controllers Features - C7400 solid state elements sense enthalpy (temperature and humidity), use two sensors for differential control, maximizing energy savings.

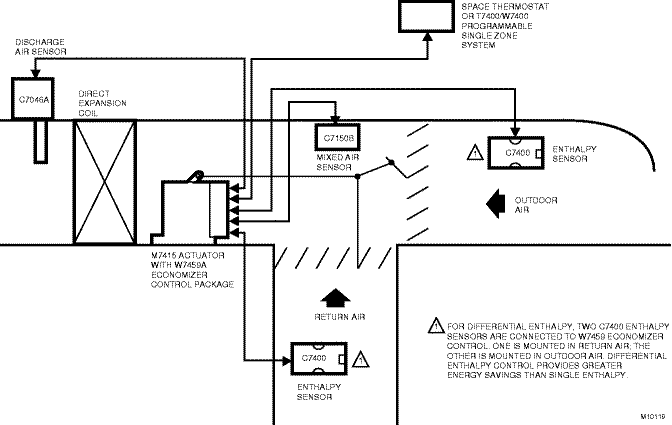

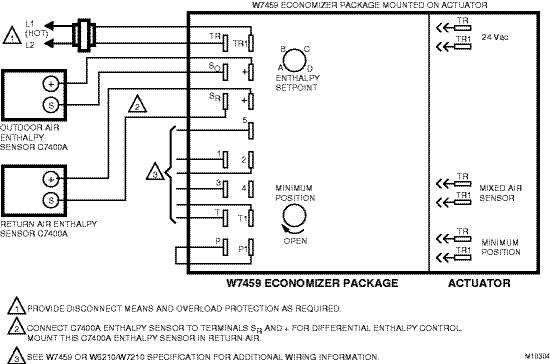

- Use one sensor in outdoor air for single sensor control, use two sensors, one in return air and one in outdoor air, for differential control.
- C7400 mount in any position up to 200 ft (61 m) away from Economizer Logic Module.
- UL94-5V enclosure.
Product Specifications - Application
- Enthalpy economizing Sensor for Duct outside (supply) or return
- Dimensions (in.)
- 4 5/32 in. high x 3 7/8 in. wide x 1 in. deep
- Dimensions (mm)
- 81 mm high x 96 mm wide x 25 mm deep
- Used With
- W7212C
- Item Type
- Product
- Mounting
- Mounted in any position where it is exposed to freely circulating air
- Approvals, Underwriters Laboratories Inc.
- Component Recognized: E4436
- Electrical Connections
- Two 1/4 in. quick-connect terminals
- Operating Humidity Range (% RH)
- 11 to 90% RH
- Sensor
- 4-20 mA output
- Operating Temperature Range (F)
- 32 F to 125 F
- Operating Temperature Range (C)
- 0 C to 52 C
- Approvals, CE
- Report: GV97-011
- Color
- Black
- Ambient Temperature Range (F)
- 125 F Maximum
- Ambient Temperature Range (C)
- 52 C Maximum
| | | | |
|
