827071-01 - RHI 504 - Quad Industry GmbH

Артикул: 827071-01
Наименование: RHI 504
Производитель: Leine & Linde AB

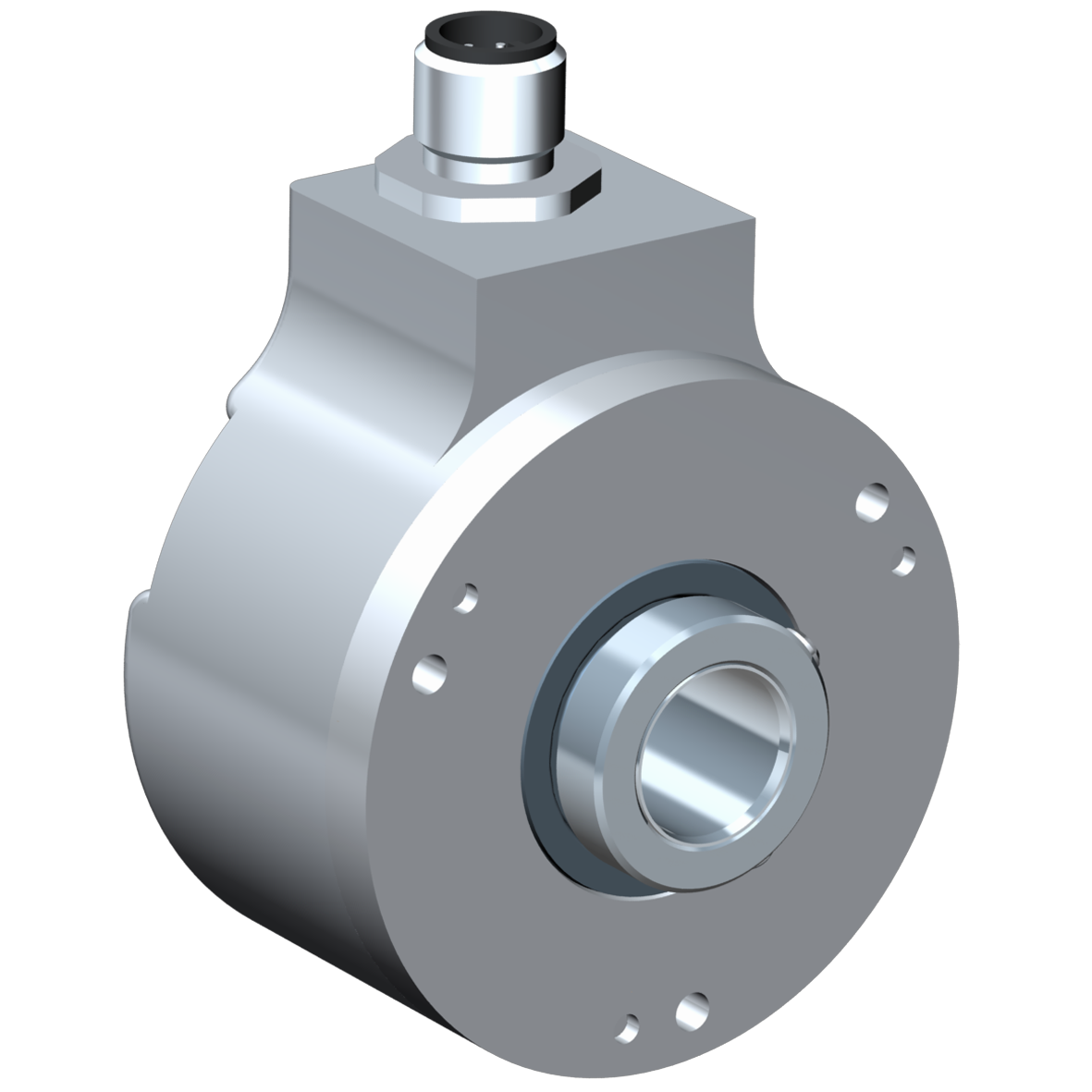

RHI 504

Part number: 827071-01

  • Robust ?58 mm encoder with hollow shaft
  • Short-circuited protected outputs
  • IP67 at housing, IP66 at shaft inlet
  • High temperature version


OBSOLETE MODEL


Product data

Type RHI
Model 504 High temperature (100 ВєC)
Shaft type ?14 mm through-going hollow shaft
Flange type 56/57-flange
Resolution 2048
Power supply 9-30 Vdc
Output signal HTL
Connection type M12 connector 8-pin
Connecting direction Radial



Downloads

Datasheet RHI 5043D Model (step)Recommended mating shaftsMounting instruction

Accessories

Connectors & cables
