1034204-01 - RHI 504 - Quad Industry GmbH
Артикул: 1034204-01
Наименование: RHI 504
Производитель: Leine & Linde AB
|
|

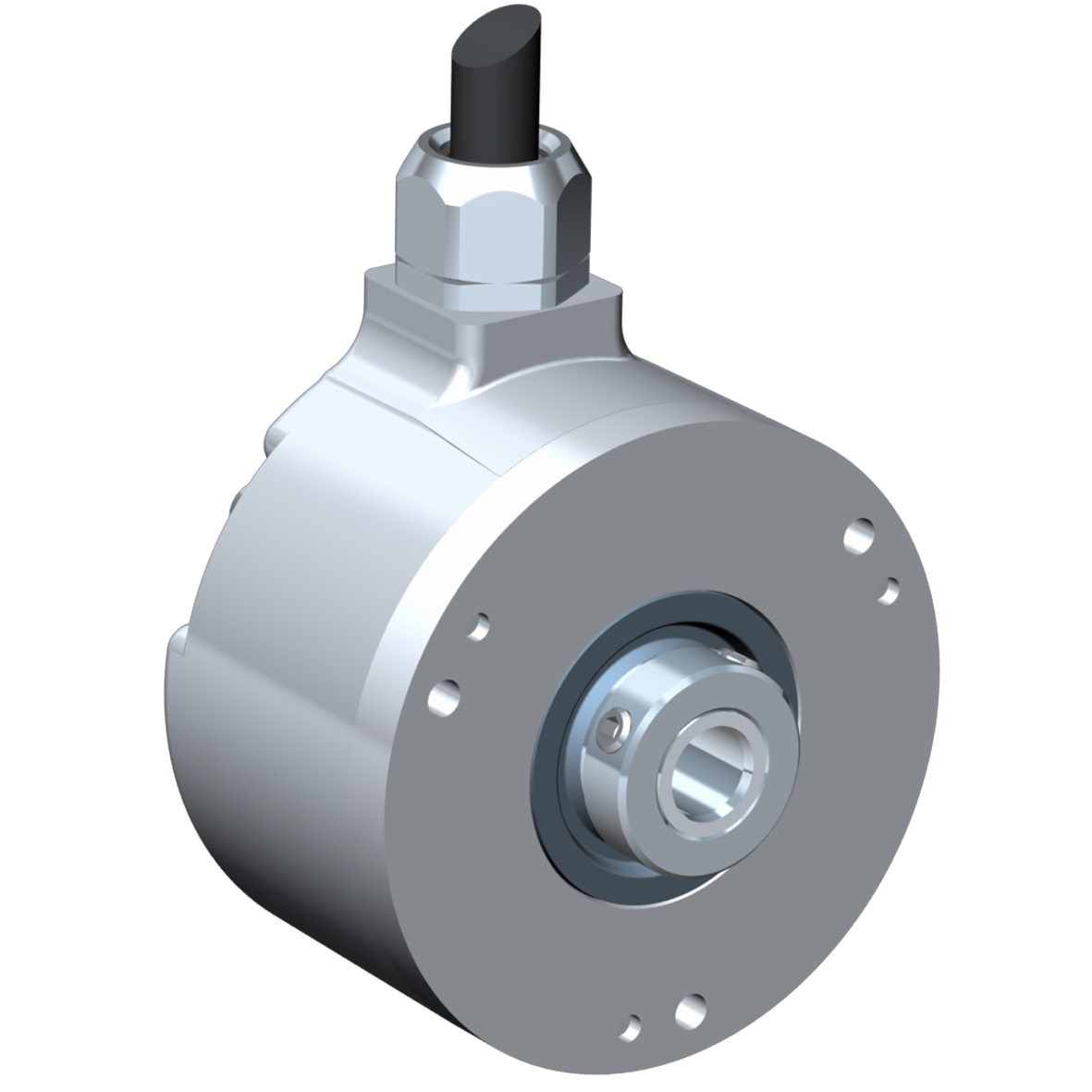

Part number: 1034204-01 - Robust ?58 mm encoder with hollow shaft
- Short-circuited protected outputs
- IP67 at housing, IP66 at shaft inlet
- High temperature version
OBSOLETE MODEL Product data Type | RHI | | Model | 504 High temperature (100 ВєC) | | Shaft type | ?8 mm through-going hollow shaft | | Flange type | 56/57-flange | | Resolution | 2048 | | Power supply | 9-30 Vdc | | Output signal | RS422 | | Connection type | Cable | | Connecting direction | Radial | | Cable length | 2.50 m | | Downloads
|
