635400-01 - RHI 504 - Quad Industry GmbH

Артикул: 635400-01
Наименование: RHI 504
Производитель: Leine & Linde AB

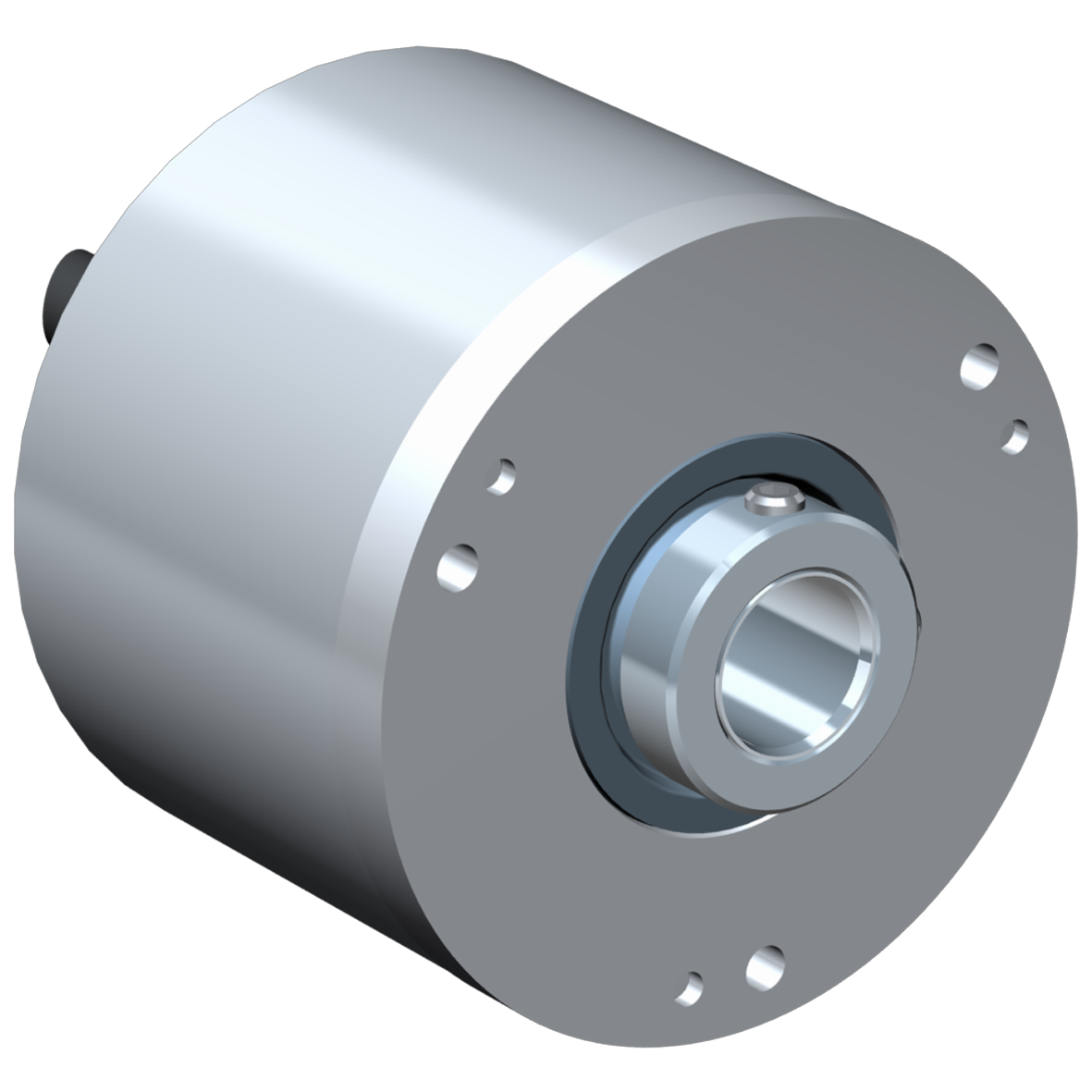

RHI 504

Part number: 635400-01

  • Robust ?58 mm encoder with hollow shaft
  • Short-circuited protected outputs
  • IP67 at housing, IP66 at shaft inlet
  • High temperature version


OBSOLETE MODEL


Product data

Type RHI
Model 504 High temperature (100 ВєC)
Shaft type ?12 mm blind hollow shaft
Flange type 56/57-flange
Resolution 2500
Power supply 9-30 Vdc
Output signal HTL
Connection type Cable
Connecting direction Axial
Cable length 20.00 m



Downloads

Datasheet RHI 5043D Model (step)Recommended mating shaftsMounting instruction

Accessories

Connectors & cables
