1087621-01 - XHI 803 - Quad Industry GmbH

Артикул: 1087621-01
Наименование: XHI 803
Производитель: Leine & Linde AB

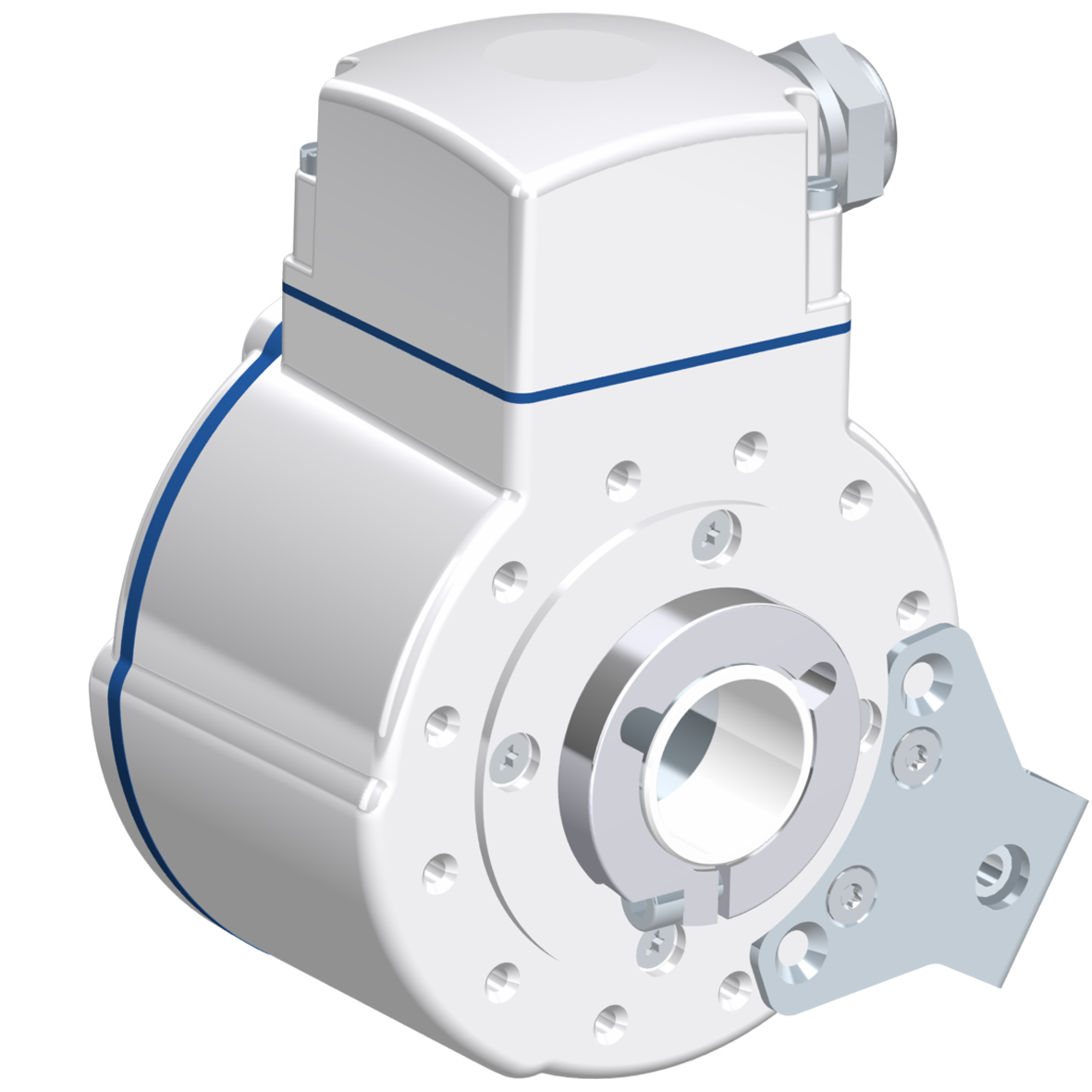

XHI 803

Part number: 1087621-01

  • Performance hollow shaft encoder for heavy duty industries
  • High vibration and shock resistance
  • Electrically insulated shaft


OBSOLETE MODEL


Product data

Type XHI
Model 803 Standard
Shaft type ?25 mm through-going hollow shaft
Flange type 87-flange
Resolution 3072
Power supply 9-30 Vdc
Output signal HC-HTL
Connection type Cable gland
Connecting direction Adjustable
Cable gland dimension M20 for ?8-11 mm cables
Torque support 120 degrees torque bracket
Number of channels 6
Advanced Diagnostic System Available upon request
Overvoltage protection Yes



Downloads

Datasheet XHI 803Recommended mating shaftsMounting instruction 801/803

Accessories

Connectors & cables
