810568-01 - XHI 803 - Quad Industry GmbH

Артикул: 810568-01
Наименование: XHI 803
Производитель: Leine & Linde AB

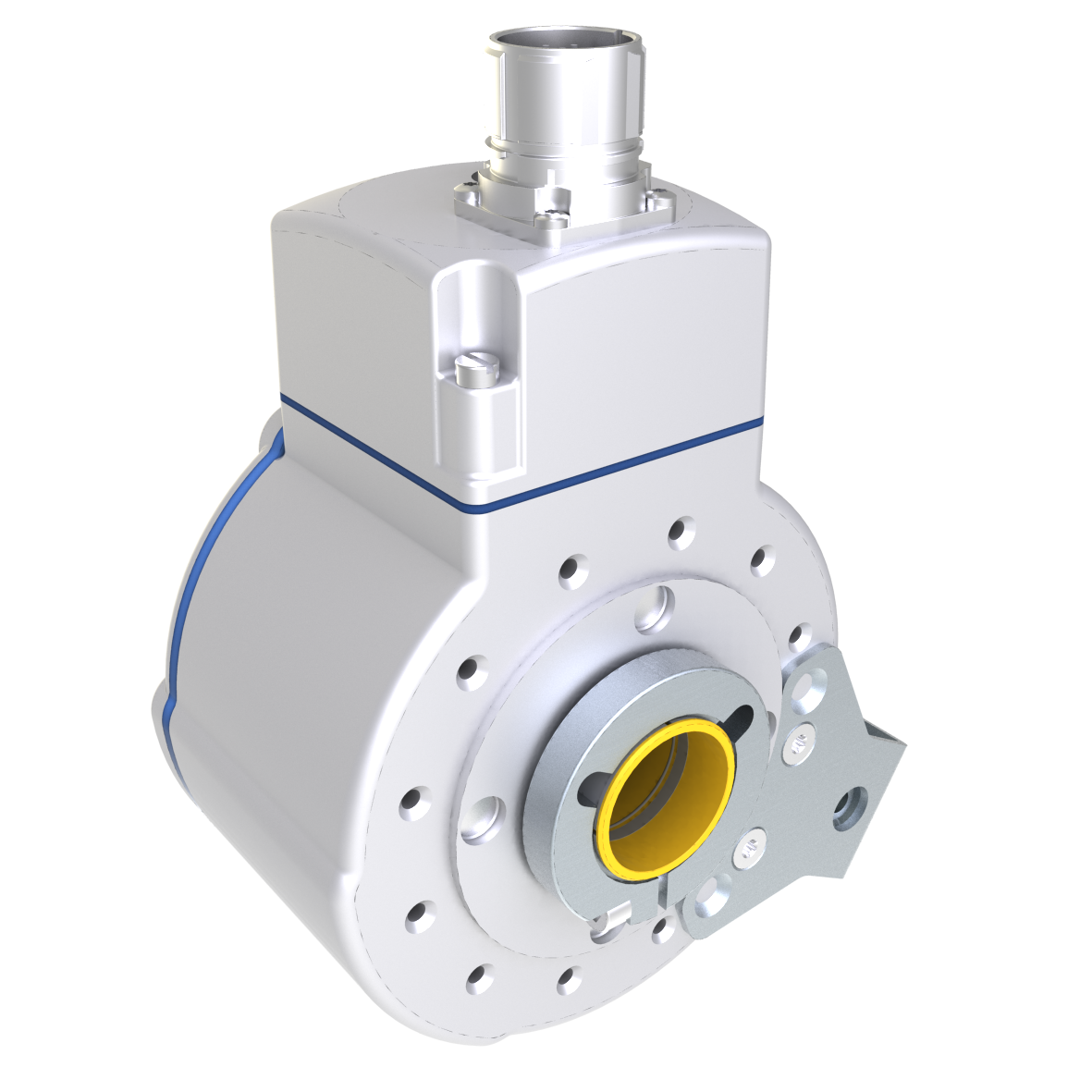

XHI 803

Part number: 810568-01

  • Performance hollow shaft encoder for heavy duty industries
  • High vibration and shock resistance
  • Electrically insulated shaft


OBSOLETE MODEL


Product data

Type XHI
Model 803 Standard
Shaft type ?1 inch through-going hollow shaft
Flange type 87-flange
Resolution 1024
Power supply 9-30 Vdc
Output signal 1Vpp
Connection type M23 connector 12-pin + Optolink
Connecting direction Radial
Torque support 120 degrees torque bracket
Pin layout CW
Number of channels 6
Advanced Diagnostic System Available upon request
Overvoltage protection Available upon request



Downloads

Mounting instruction 801/803Datasheet XHI 8033D Model (step)Recommended mating shafts

Accessories

Connectors & cables
