813267-02 - XHI 862 - Quad Industry GmbH

Артикул: 813267-02
Наименование: XHI 862
Производитель: Leine & Linde AB

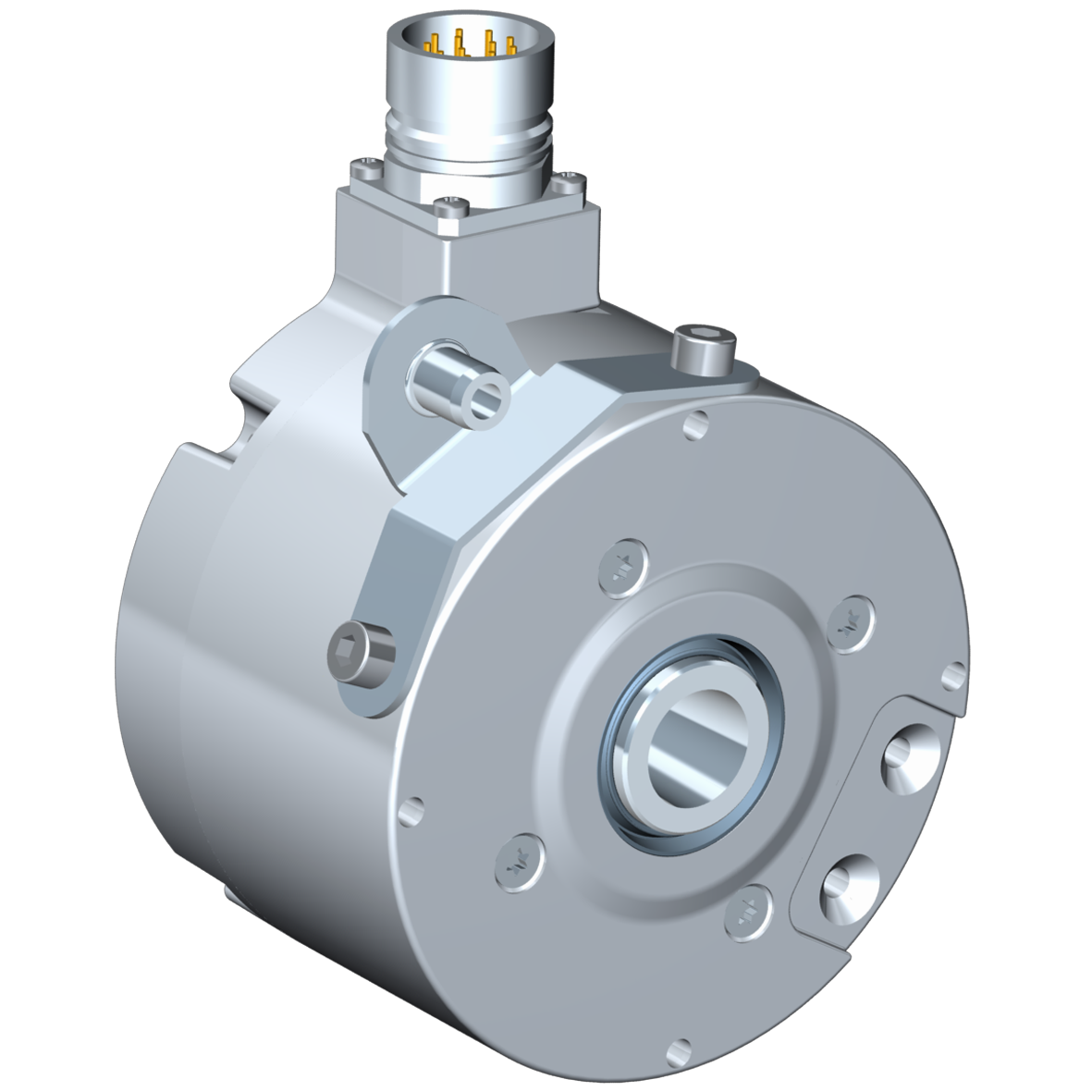

XHI 862

Part number: 813267-02

  • Performance hollow shaft encoder for heavy duty industries
  • Hybrid bearings for extended lifetime
  • High vibration and shock resistance
  • Electrically insulated shaft; up to 2,5 kV


OBSOLETE MODEL


Product data

Code key description 862219126
Type XHI
Model 862
Shaft type ?17 mm taper hollow shaft
Flange type 86-flange
Resolution 2500
Power supply 9-30 Vdc
Output signal HC-HTL
Connection type M23 connector 12-pin
Connecting direction Radial
Pin layout CW
Number of channels 6
Advanced Diagnostic System Available upon request
Overvoltage protection Yes
Torque bracket 330 degrees orientation



Downloads

Datasheet XHI 8623D Model (step)Recommended mating shaftsMounting instruction 861/862/865

Accessories

Connectors & cables
