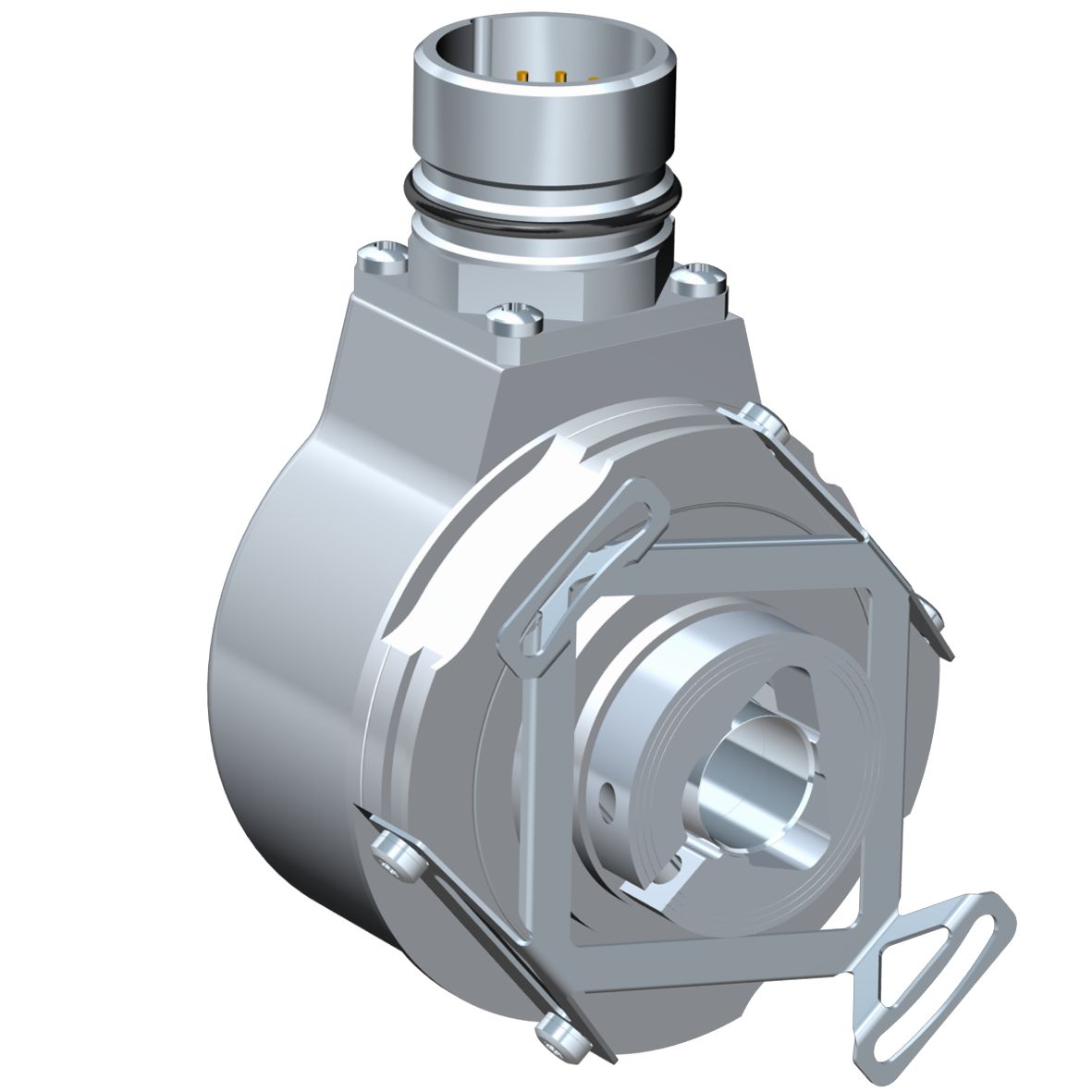

RHA 608

Part number: 576463-01

Ruggedized Hollow shaft encoder, Absolute
  • 58mm diameter
  • Single turn resolution 13 bit
  • Multi turn resolution 12 bit
  • Robust design
  • Shock and vibration protected


OBSOLETE MODEL


Product data

Type RHA
Model 608 Multiturn
Shaft type ?12 mm blind hollow shaft
Flange type 58/59-flange with stator coupling
Resolution 25 bit absolute + Incremental 512 ppr 1Vpp
Power supply 10-30 Vdc
Output signal SSI Gray with additional incremental 1Vpp signals
Connection type M23 connector 17-pin
Connecting direction Radial



Downloads

Datasheet RHA 608Recommended mating shaftsMounting instructionMounting instruction

Accessories

Connectors & cables
