809820-01 - XHI 801 - Quad Industry GmbH

Артикул: 809820-01
Наименование: XHI 801
Производитель: Leine & Linde AB

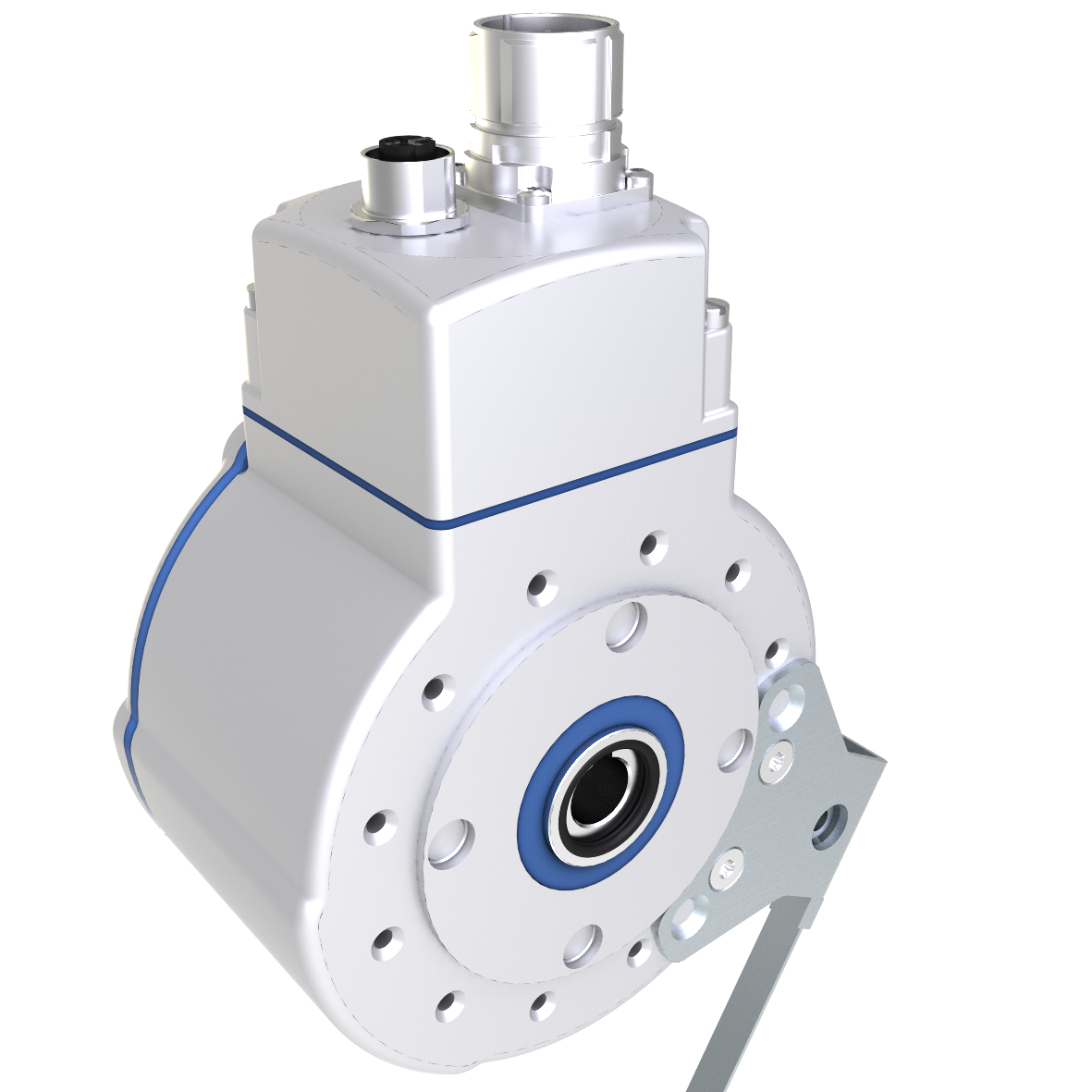

XHI 801

Part number: 809820-01

  • Performance hollow shaft encoder for heavy duty industries
  • Hybrid bearings for extended lifetime
  • High vibration and shock resistance
  • Electrically insulated shaft; up to 2,5 kV


OBSOLETE MODEL


Product data

Type XHI
Model 801 Extra robust
Shaft type ?12 mm hollow shaft with keyway
Flange type 86-flange
Resolution 1024
Power supply 9-30 Vdc
Output signal HC-HTL
Connection type M23 connector 12-pin + ADS Online
Connecting direction Radial
Pin layout CW
Number of channels 6
Overvoltage protection Available upon request
Torque support 120 degrees torque bracket
Advanced Diagnostic System ADS Online
