Артикул: 894585-01
Наименование: XHI 801
Производитель: Leine & Linde AB

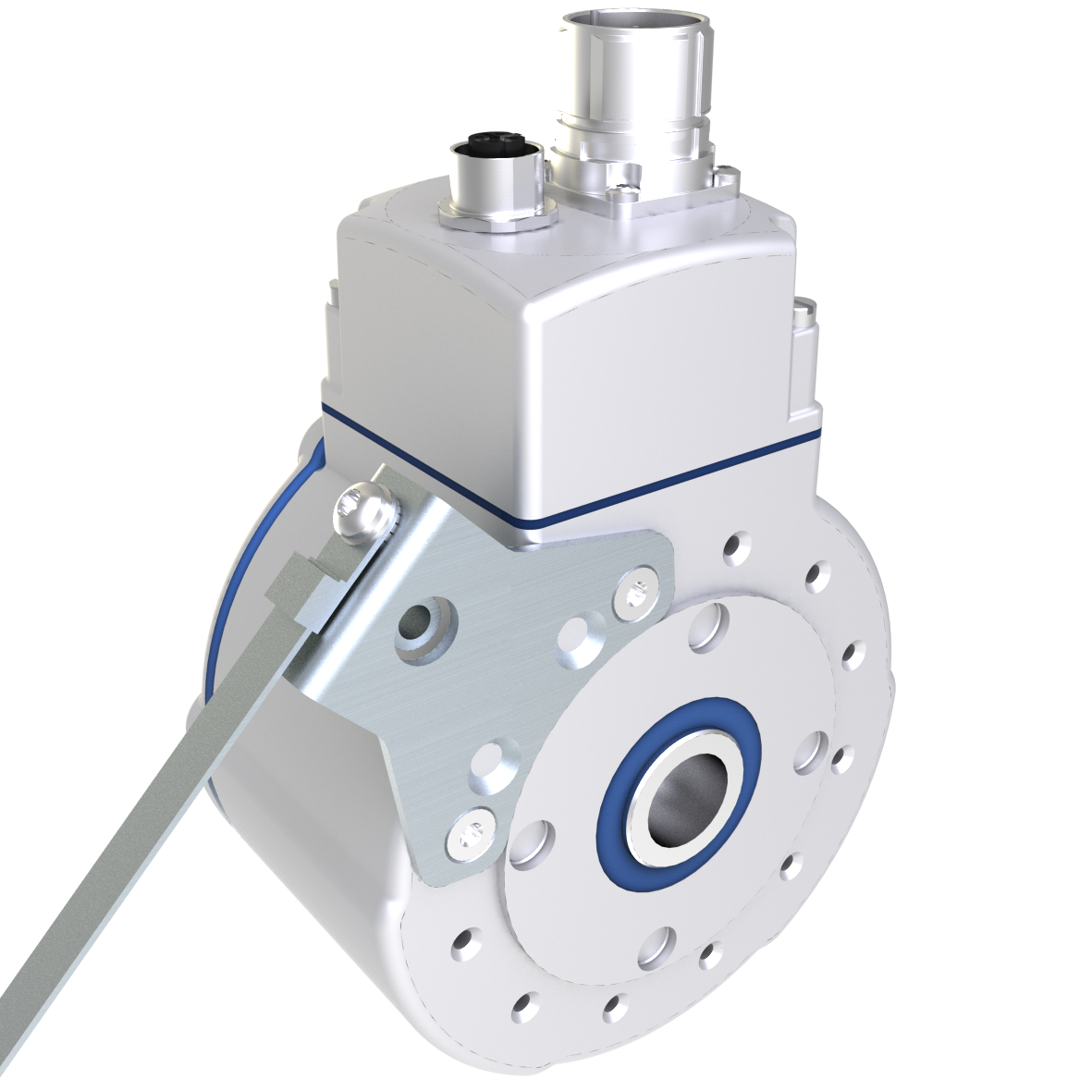

XHI 801

Part number: 894585-01

  • Performance hollow shaft encoder for heavy duty industries
  • Hybrid bearings for extended lifetime
  • High vibration and shock resistance
  • Electrically insulated shaft; up to 2,5 kV


OBSOLETE MODEL


Product data

Type XHI
Model 801 Extra robust
Shaft type ?17 mm taper hollow shaft
Flange type 86-flange
Resolution 2500
Power supply 9-30 Vdc
Output signal HC-HTL
Connection type M23 connector 12-pin + ADS Online
Connecting direction Radial
Pin layout CW
Number of channels 6
Overvoltage protection Yes
Torque support 315 degrees torque bracket
Advanced Diagnostic System ADS Online



Downloads

Datasheet XHI 8013D Model (step)Recommended mating shaftsADS Online ManualMounting instruction 801/803

Accessories

Connectors & cables
