574978-06 - RHI 503 - Quad Industry GmbH

Артикул: 574978-06
Наименование: RHI 503
Производитель: Leine & Linde AB

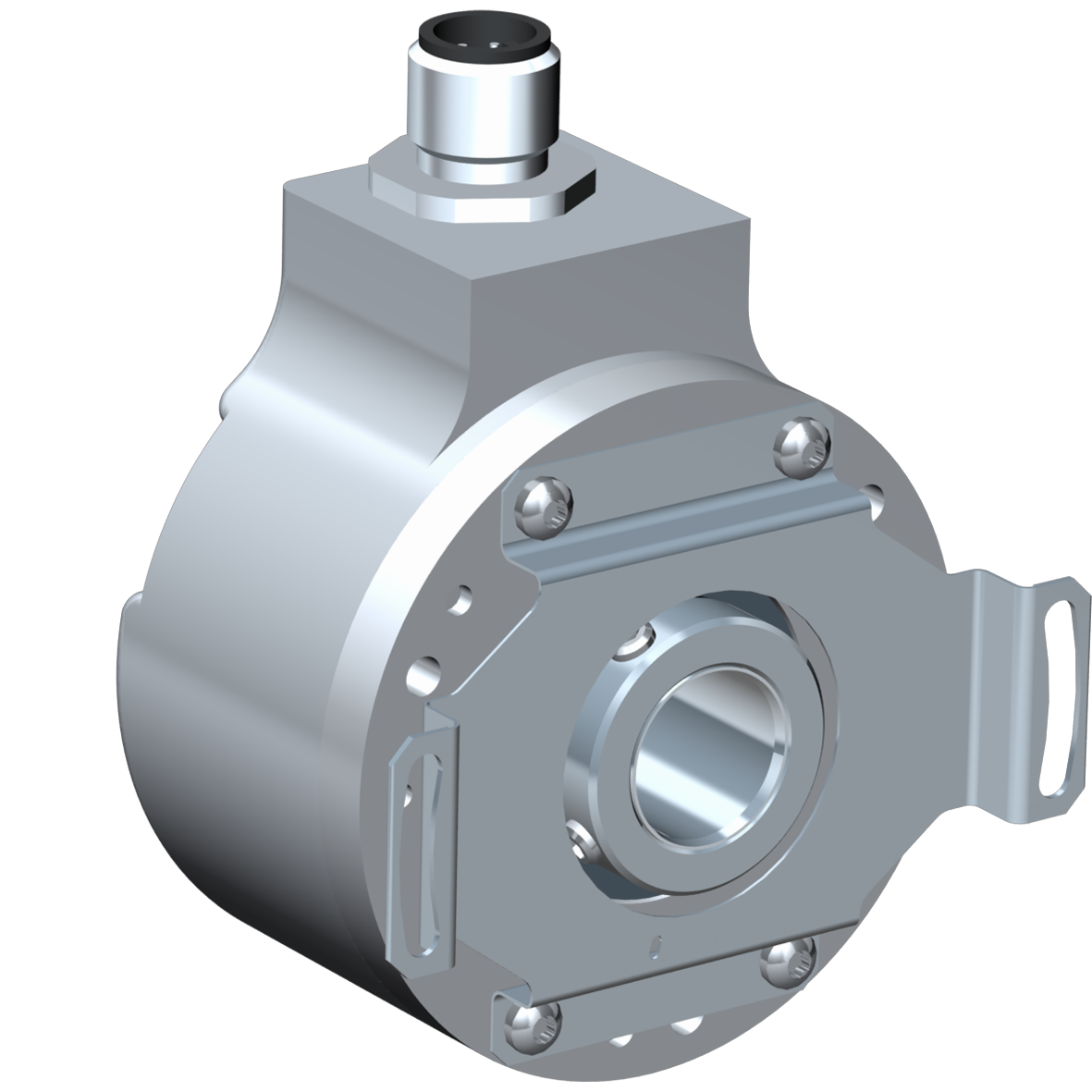

RHI 503

Part number: 574978-06

  • Robust ?58 mm encoder with hollow shaft
  • Short-circuited protected outputs
  • IP67 at housing, IP66 at shaft inlet


OBSOLETE MODEL


Product data

Type RHI
Model 503 Standard
Shaft type ?14 mm blind hollow shaft
Flange type 58/59-flange with stator coupling
Resolution 3175
Power supply 9-30 Vdc
Output signal HTL
Connection type M12 connector 8-pin
Connecting direction Radial



Downloads

Datasheet RHI 5033D Model (step)Recommended mating shaftsMounting instruction

Accessories

Connectors & cables
