89697 - Key and Rotary Switch, MetriPack 280 connector || 89697 - Quad Industry GmbH

Артикул: 89697

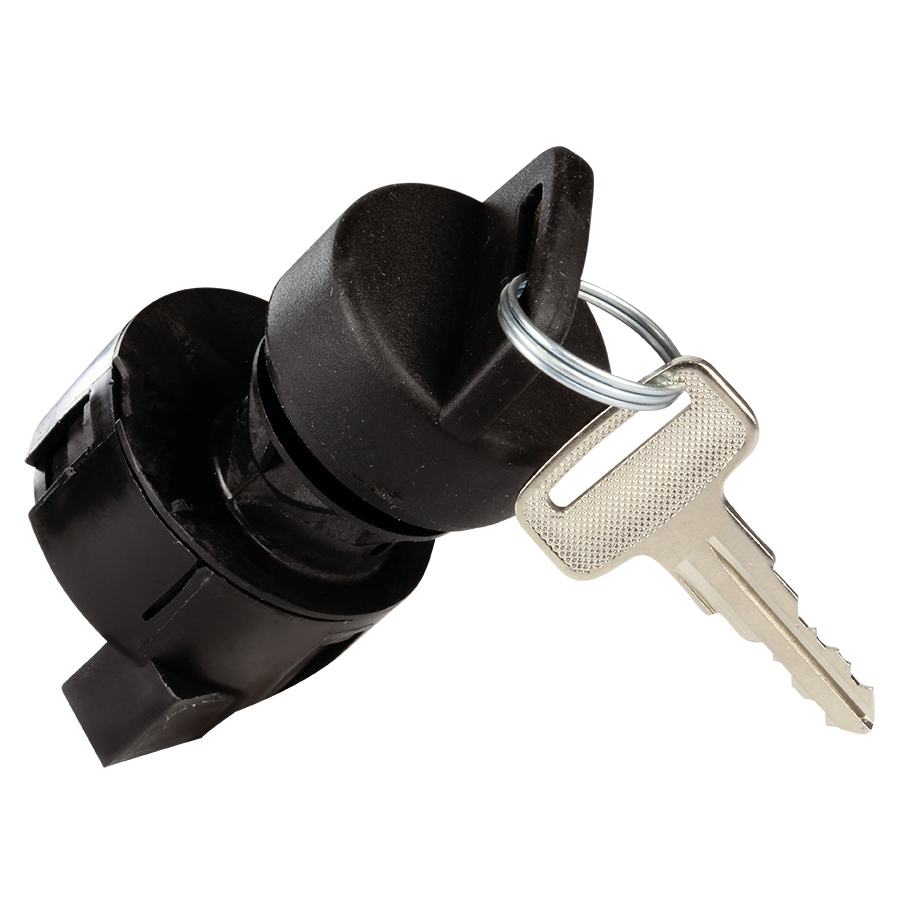

Наименование: Key and Rotary Switch, MetriPack 280 connector || 89697
Производитель: Honeywell





Description
Custom-engineered. Environmentally sealed. The Honeywell Sensing and Control sliding contact key switch offers the specs and features you need - along with the innovation and practicality you demand. S&C key switches use o-rings to help keep dirt and moisture out of the contact chamber and prolong the life of the switch. Two-, three-, and four-position key switch options available.

Features
  • Two-, three-, and four-position switches available
  • Integral connector or screw terminations
  • Can be designed to match existing key codes with options for up to 300 unique key codes per part number
  • Environmentally sealed
  • Tested for temperature, cycling, vibration, dust, pressure wash, humidity, salt, and fog
  • Key removeable in multiple positions
  • Designed to withstand severe temperature extremes and chemical splashes
  • Weep holes in key tumbler/cylinder housing allow for water drainage

Potential Applications
  • All-terrain vehicles
  • Snowmobiles
  • Golf carts
  • Aerial/scissor/boom lifts
  • Telehandlers
  • Construction equipment
  • Skid loaders
  • Forklifts
  • Agricultural equipment
  • Tractors
  • Material handlers
  • Marine equipment

Product Specifications
Connector MetriPak 280
Position Three [Off-On(1)-On(2 Dual Circuit)], 4 terminals
Cycle Life (Rotary) 25000 Cycles
Mounting Panel
Chamber Sealing O-ring
Unique Key Codes Optional
Match Existing Key Codes Optional (with factory approval)
Multiple Key Codes Optional
Diameter 22,1 mm [0.87 in]
Thickness 3,18 mm to 6,35 mm [0.15 in to 0.25 in]
Depth Behind Panel 43,43 mm [1.71 in]
Temperature -40 °C to 85 °C] -40 °F to 185 °F]
Electrical Rating 12 Vdc, 20 A, 24 Vdc, 8 A (Res.)
Availability Global
Comment Key Switch
Series Name Hobb Key and Rotary Switch
