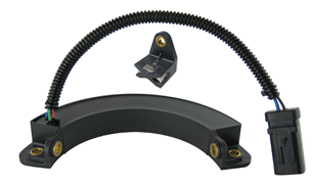

Íàèìåíîâàíèå: SMART Position Sensor, SPS Series, 100° arc configuration, 0° to 100° outside sensing range, 5 Vdc supply voltage, 0.5 Vdc to 4.5 Vdc analog output, Ampseal 16 connector (p/n 776536), magnet actuator included || SPS-A100X-LAAS0401
Ïðîèçâîäèòåëü: Honeywell
|
|
Description The Honeywell SMART Arc Position Sensor is one of the most durable, adaptable, lightweight, and non-contact position sensors available, enabling absolute position sensing with enhanced accuracy. This simple, robust, arc position sensor offers an IP69K sealed package, eliminating mechanical failure mechanisms, reducing wear and tear, improving reliability and durability, and minimizing downtime. The SMART Arc Position Sensor is a non-contact sensing solution, providing highly accurate motion control and improving operation efficiency and safety. This Honeywell position sensor utilizes magnetoresistive technology to detect the position of a magnet relative to the sensor in one of two available sensing ranges: Why is the SMART Position Sensor smart? SMART means that this is a sensor that can essentially think for itself. SMART Position Sensors provide a self-diagnostics feature and data gathering for enhanced reliability and closed-loop feedback control. These devices use a patented combination of an ASIC (Application-Specific Integrated Circuit) and an array of MR (magnetoresistive) sensors to accurately and reliably determine the position of a magnet attached to a moving object so that the object's position can be determined or controlled. The MR array measures the output of the MR sensors mounted along the magnet's direction of travel. The output and the MR sensor sequence determine the nearest pair of MR sensors to the center of the magnet location. The output of these two MR sensors is then used to determine the position of the magnet between them. With this sensor, Honeywell has utilized MR technology through the ASIC at a level never before accomplished. Other configurations are in development. Features - Reliable, durable: Non-contact design reduces wear and tear, improving reliability and durability, minimizing downtime
- Easy to install: Installation takes four steps (1: position device, 2: drill holes, 3: mount sensor, 4: locate magnet/connect sensor) vs. up to 14 steps some competitive products require, simplifying installation and reducing set-up costs
- Rugged: Honeywell utilizes unique package materials with no moving parts within the sensor, making it resistant to vibration, shock, and extreme temperatures
- Flexible: Air gap tolerance of 7,8 ±2,5 mm [0.307 ±0.098 in] or 9,2 ±2,5 mm [0.36 ±0.09 in] (100°) and 8,5 ±2,5 mm [0.338 ±0.098 in] (180°) between sensor and magnet expands application use
- Cost effective: Adaptable, non-contacting design allows customers to eliminate unnecessary connections for installation, reducing installation steps/time and components
- Accurate: 100° configuration accurately measures values down to 0.06° while the 180° configuration accurately measures values down to 0.11°
- Adaptable: Electronics on board allow for flexible packaging and component compatibility with existing systems
- Lightweight: Lighter in weight than optical encoders
- Self-diagnostics feature can reduce equipment downtime by providing predictive maintenance input
- Combined patented MR sensor and ASIC technology provide enhanced differentiation and performance
- IP67, IP69K sealing allow use in many harsh applications
- RoHS-compliant materials meet Directive 2002/95/EC
| Potential Applications Transportation: - Aerial work lift platform, front end loader and digger/excavator boom position
- Scissor lift position
- Refuse truck lift and automatic reach arm position
- Mobile crane steering
- Timber harvester/processor equipment cutter arm angle
- On-board loader weighing system position
Industrial: - Telescoping conveyor elevation
- Power generation contact angle
- Rail-road crossing arms position
Military: - Remote weapon systems elevation
- Chassis suspension systems position height
- Military vehicle door position
Aerospace: - Ground-based solar panels elevation and azimuth
- Ground-based satellite dish elevation and azimuth
Medical: - Robotically-assisted surgery equipment position
- Patient bed elevation
| | Product Specifications | | Configuration | Arc | | Sensing Range | 0° to 100° | | Air Gap | 9,2 ±2,5 mm [0.36 ±0.09 in] | | Supply Voltage | 5 Vdc | | Resolution | 0.06° | | Output | 0.5 Vdc to 4.5 Vdc analog | | Supply Current | 30 mA max. | | Sensitivity | 40 mV/° ±4% FS | | Termination | Ampseal 16 connector (p/n 776536) | | Sensor Dimensions | 183 mm L x 86 mm W x 31 mm H [7.20 in L x 3.39 in W x 1.22 in H] | | Magnet Strength | 10,000 Gauss | | Housing Material | thermoplastic | | Linearity | ±0.4% full scale output | | Operating Temperature | -40 °C to 85 °C [-40 °F to 185 °F] | | Storage Temperature | -40 °C to 85 °C [-40 °F to 185 °F] | | Vibration | 20 G from 10 Hz to 2000 Hz | | Shock | 50 G half sine wave with 11 ms duration | | Sealing | IP67, IP69K | | Agency Approvals and Standards | CE | | UNSPSC Code | 41111937 | | UNSPSC Commodity | 41111937 Rotary position sensors | | Availability | Global | | Series Name | SPS |
|
