Артикул: M4185A1001/U
Наименование: 60 lb-in, Spring Return, Two Position, Line Voltage, 120V
Производитель: Honeywell
|
|
Overview Honeywell 40 VA general purpose transformers power 24Vac circuits. Features - Color-coded lead wires for primary connections and screw terminals for secondary connections
- Includes fixed 1/4 inch (6mm) male quick-connects (AT140A models only) or color-coded lead wires for primary and secondary connections
- Meets NEC Class 2 requirements and Underwriters Laboratories Standard UL 1585
- Identified Class 2 not wet, Class 3 wet

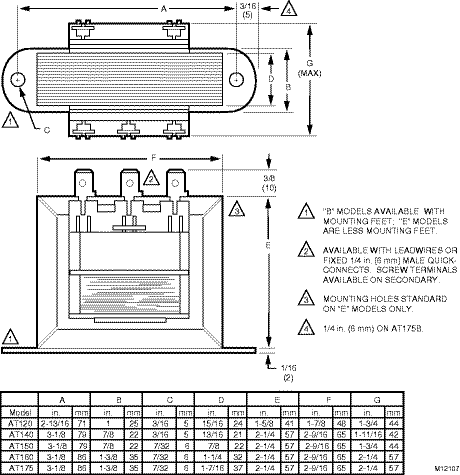

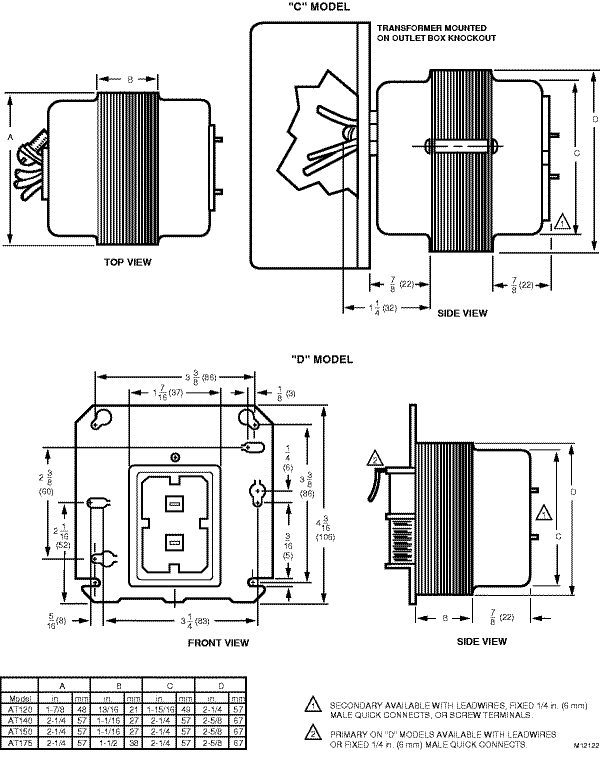

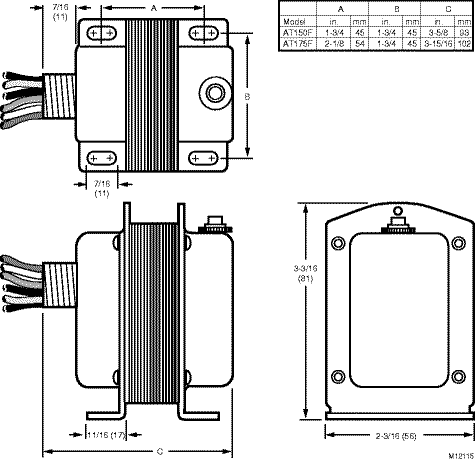

Product Specifications - Dimensions (in.)
- 1 11/16 in. high x 3 1/2 in. wide x 1 3/4 in. deep
- Dimensions (mm)
- 43 mm high x 89 mm wide x 75 mm deep
- Temperature Range (F)
- -20 F to +105 F
- Temperature Range (C)
- -29 C to +41 C

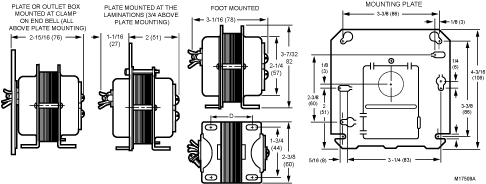

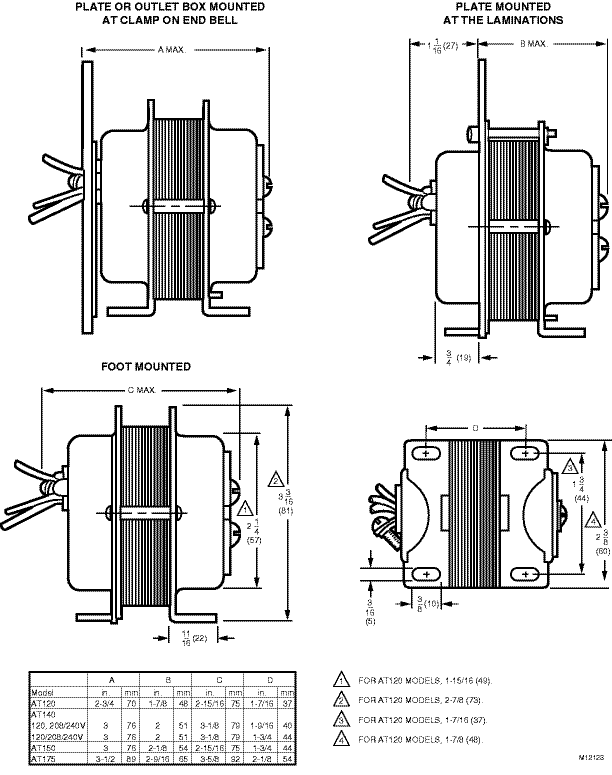

- Mounting
- Foot-mounted
- Electrical Ratings
- Primary voltage--208 Vac, 240 Vac, Secondary voltage--27 V.O.C.
- Frequency
- 60 Hz
- Approvals, Underwriters Laboratories Inc.
- UL Component Recognized: B, D, E models. File# E14881
- Approvals, Canadian Standards Association
- CSA Certified: A & B models.
- Approvals, N.E.C.
- NEC Class 2
- Electrical Connections (Primary)(in.)
- Primary and secondary leadwires with 1/4 in. male quick-connects
- Electrical Connections (Primary)(mm)
- Primary and secondary leadwires with 1/4 in. male quick-connects
- Electrical Connections (Secondary)(in.)
- Primary and secondary leadwires with 1/4 in. male quick-connects
- Electrical Connections (Secondary)(mm)
- Primary and secondary leadwires with 6.4 mm male quick-connects
- Electrical Ratings, Output
- 24 Vac at 40 VA
| | | | |
|
