T775M2048/U - Electronic Temperature Controller, Modulating, 2 SPDT, 2 sensor inputs, 1 sensor included - Quad Industry GmbH
Àðòèêóë: T775M2048/U
Íàèìåíîâàíèå: Electronic Temperature Controller, Modulating, 2 SPDT, 2 sensor inputs, 1 sensor included
Ïðîèçâîäèòåëü: Honeywell
Overview
The T775 electronic remote temperature controllers are the next generation of commercial and agricultural controls capable of remote sensing of temperature and providing switched and/or proportional outputs to various types of loads.
Features
Save time on installations with the easy-to-use graphical Interface, large display, and the intuitive programming.
Use the time clock scheduler or digital input to control the setback and disable output options to help save energy.
Protect equipment from freezing or overheating on models with the modulating high or low limit control option.
Get pinpoint control on modulating outputs by setting the integral and derivative times (PI or PID).
Configure models with reset in a few easy steps.
Control floating actuators with floating outputs on select models.
Eliminate the need for a separate time delay device and protect equipment with the minimum off time option.
Sensor 50021579-001 included with non-NEMA 4X models.
Sensor T775-SENS-WR included with NEMA-4X models.
Product Specifications
Application
On/off or analog controller for applications where electronic accuracy and remote sensing of temperature is required.

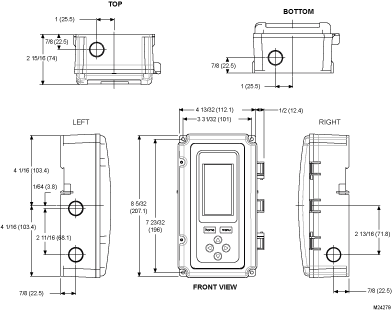

Dimensions (in.)
8 5/32 in. high x 4 13/32 in. wide x 2 15/16 in. deep
Dimensions (mm)
207.1 mm high x 112.1 mm wide x 74 mm deep
Frequency
50 Hz, 60 Hz
Approvals, Underwriters Laboratories Inc.
Approved
Voltage
24 Vac or 120/240 Vac
Setpoint Temperature Range (C)
-40 C to 120 C
Setpoint Temperature Range (F)
-40 F to 248 F
Operating Temperature Range (F)
Ambient-- -40 F to 140 F @ 60 Hz, -40 F to 125 F @ 50 Hz
Operating Temperature Range (C)
Ambient-- -40 C to 52 C @ 50 Hz, -40 C to 60 C @ 60 Hz
Approvals, CE
Approved
Approvals, Canadian Underwriters Laboratories Inc.
Approved
Type
Modulating-NEMA 1
Analog Output
2,Electronic Series 90, 4-20 mA, 0-10 Vdc, 2-10 Vdc
Relay Outputs
2 SPDT
Relay Contact Ratings
24 Vac-- 10.0A resistive, 120 Vac-- 1/2 hp, 9.8 AFL, 58.8 ALR, 125 VA Pilot Duty, 240 Vac-- 1/2 hp, 4.9 AFL, 29.4 ALR, 125 VA Pilot Duty
